Enabling the Straight Mode for SDI Outputs

You can enable the Straight Mode to apply a straightforward workflow when associating inputs to SDI outputs.

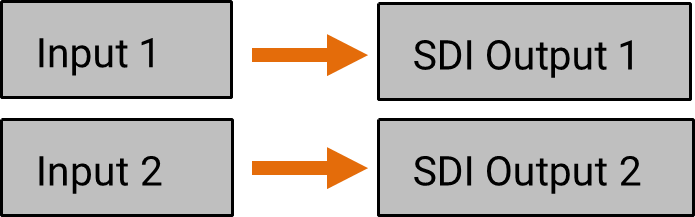

When booking inputs and SDI outputs, or using a drag and drop, inputs are locked to their corresponding output number (for bookings, and drag and drops towards SDI outputs):

You can enable this Straight Mode for each StreamHub separately.

1. In the menu bar, click on Settings.

2. In the Receivers section, click on the StreamHub for which you want to apply a Straight Mode.

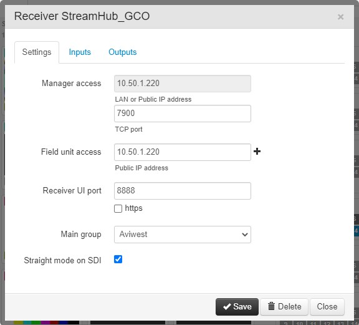

3. Click on the Straight mode on SDI check box to enable or disable the mode.
