Changing the group of a Receiver’s output(s)

Only the administrator can change the group of a receiver's outputs.

This operation is only possible if no booking has been set for this/these output(s).

1. On the Manager interface, go to the Maintenance tab.
2. Search the receiver concerned by the change.
3. Click the



   icon. A new window opens.

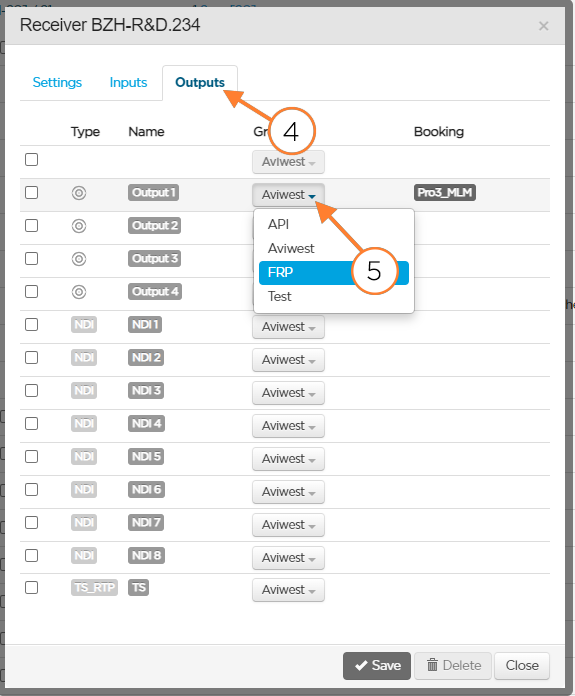

4. Go to the Outputs tab.
5. Select another group from the Group dropdown list. The modification is immediately effective.

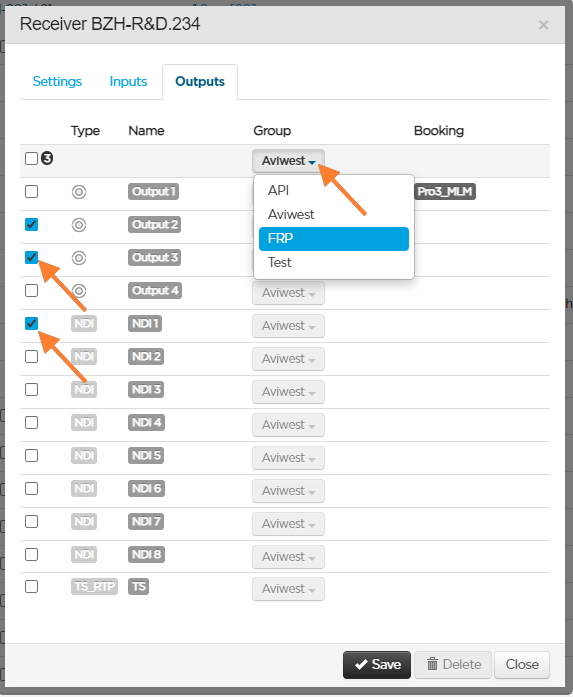

Note

You can change simultaneously the group of several outputs by ticking checkboxes on the left, selecting the group in the list and clicking Save.
