Installing the Encoder

To install the appliance:

1. Position the appliance against a solid base.



   Caution

   The surface temperature of the chassis can reach 95°C in poorly ventilated environments. We recommend that you fasten the appliance to a metal (cold) plate to increase heat dissipation.

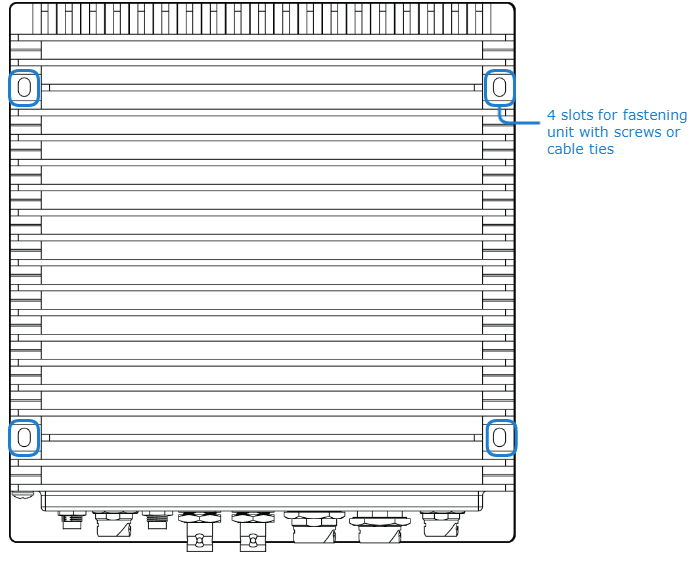

2. Fasten the appliance to its support base with four screws (size 8-32, or M4, not included).

   Or you can use two stainless steel, harsh-environment cable ties (up to 250 mils wide), which can be passed through slots in the chassis.

   Error rendering macro 'drawio' : Page loading failed

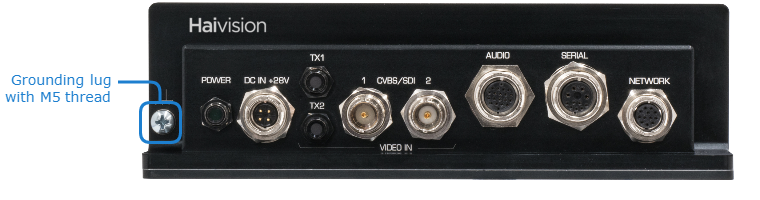

3. Fasten a grounding wire (10 AWG minimum) to the grounding lug using the screw and lock washer provided.

   Error rendering macro 'drawio' : Page loading failed


   Caution

   The chassis must be properly grounded in order to provide protection against lightning strikes and other power surges.
