Storage Options

The Makito X provides the following mezzanine storage options for either the SDI or DVI appliances:

  • Fixed (i.e., not accessible from the face-plate) mSATA SSD (solid-state drive) with USB 2.0 and SD card interfaces accessible from the face-plate.
  • Removable 2.5" SATA SSD (solid-state drive), accessible from the face-plate with an Unmount push button with LED (showing mount status).

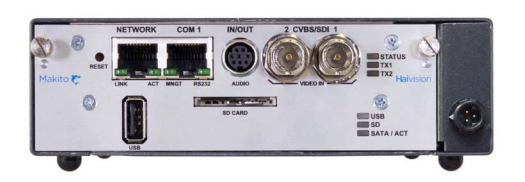

Dual SDI Appliance with Fixed Storage (Internal mSATA SSD) (#S-292E-SDI2-FS)

Dual SDI Appliance with Fixed Storage

Dual SDI Appliance with Removable Storage (SATA SSD) (#S-292E-SDI2-RS)

Dual SDI Appliance with Removable Storage

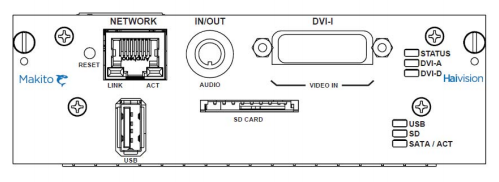

DVI Rear View with Fixed Storage (Internal mSATA SSD) (#S292E-DVI-FS)

DVI Rear View with Fixed Storage

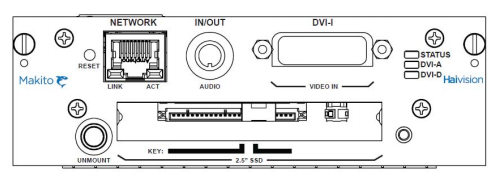

DVI Rear View with Removable Storage (SATA SSD) (#S-292EDVI-RS)

DVI Rear View with Removable Storage

Note

The USB port and SD card port are currently limited to a destination for recording asset moves/copy operations or as a location to save image snapshots.
