Setting Up a Second Stream or Recording

To create a second stream (or recording):

1. On the Outputs List View, click the



   Add button again.

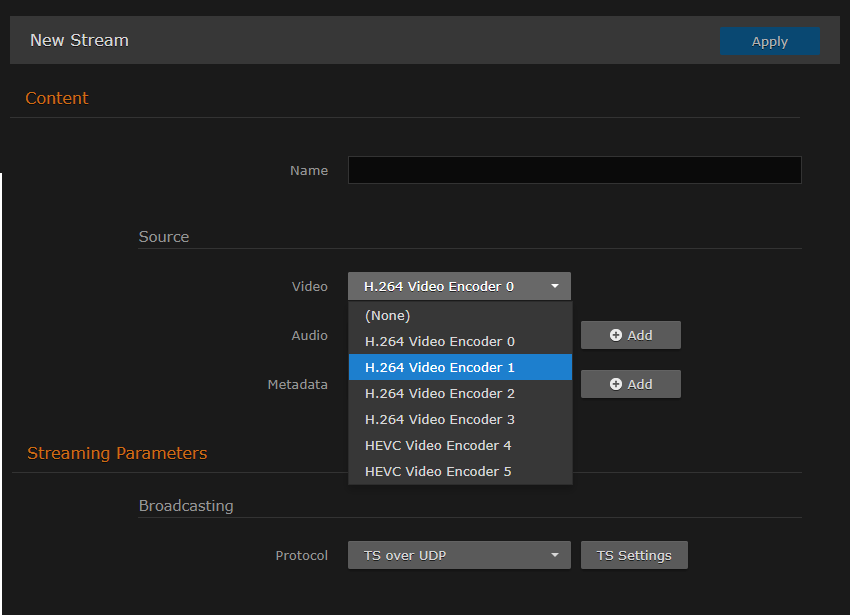

2. Follow the steps in Setting Up Streaming to configure the second session. Except for the Video Source, select a different Video Encoder. For example, if you selected Video Encoder 0 for the first stream, now select Video Encoder 2 (to capture input from SDI Input 2, as shown in the following example).




3. Also, under Streaming Parameters Destination, use a different Port number, for example, 2400.
4. Follow Steps #1 through #3 from Setting Up Recording to create a recording session with the second session.
5. Click Apply to start streaming (as well as recording, if configured).

×
