LED Status Indicators

The LED colors and flashing (blinking) speed indicate the status (operational state) of the Makito X encoder.

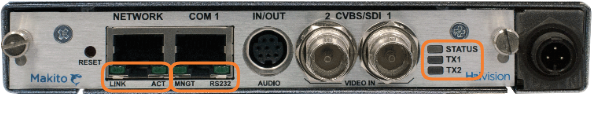

LED Status Indicators (Rear Panel)

General

Function	Description	Indication
STATUS	No power	Encoder is powered off.
	Green fast blinking	Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault.
	Green slow blinking	Booting/Initialization
	Green solid	Booting/Initialization sequence is complete (No fault/OK).
	Red fast blinking	Reset button is pressed for more than four seconds (Factory Reset enabled).
	Red slow blinking	Reset button is released after the Red fast blinking state (executing Factory Reset).
TX1 / TX2 [SDI]	Off	Encoder is powered off. Note Each TX LED is associated with the corresponding BNC connector.
	Amber solid	Either of the conditions below is sufficient to turn the LED amber: Encoder booting Valid video input not detected (i.e., if you configure an encoder to use a BNC and there is no video input lock).
	Green solid	Valid video input detected (i.e., you have signal lock).
DVI-A / DVI-D	Off	No valid signal is recognized; both LEDs are off.
DVI-A / DVI-D	Green solid	For DVI-D, a valid digital signal is plugged in. For DVI-A, a valid analog/component signal is plugged in.

Network Port

Function	Description	Indication
LINK	Off	Not connected
	Green blinking once per second	Connected at 10 Mbps
	Green blinking twice per second	Connected at 100 Mbps
	Green blinking three times per second	Connected at 1000 Mbps
ACT	Off	No activity
	Green intermittent	Little activity (e.g., management). The LED should be lit when there is activity.
	Green solid	Intense activity (e.g., transmitting video traffic)

COM1 Port

Function	Description	Indication
MNGT	Off	Port configured in Metadata Capture Mode
MNGT	Green solid	Port configured in Management Mode
RS232	Off	Port configured in RS-422
RS232	Green solid	Port configured in RS-232
