Installing the Encoder

To install the appliance:
  1. Position the appliance against a solid base.


    The surface temperature of the chassis can reach 95°C in poorly ventilated environments. We recommend that you fasten the appliance to a metal (cold) plate to increase heat dissipation.
  2. Fasten the appliance to its support base with four screws (size 8-32, or M4, not included).

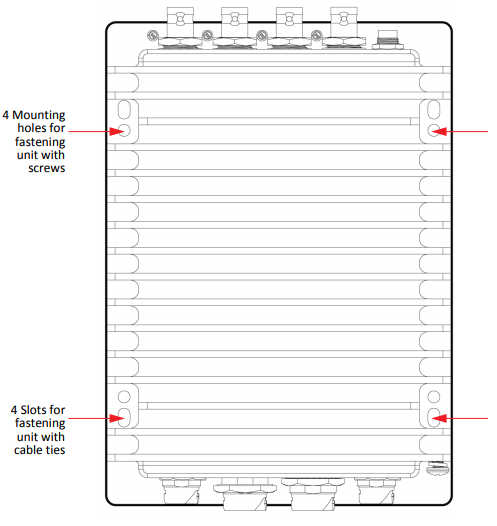

    XCR Mounting Area

    Or you can use two stainless steel, harsh-environment cable ties (up to 250 mils wide), which can be passed through slots in the chassis.

  3. Fasten a grounding wire (10 AWG minimum) to the grounding lug using the nut and lock washer provided.

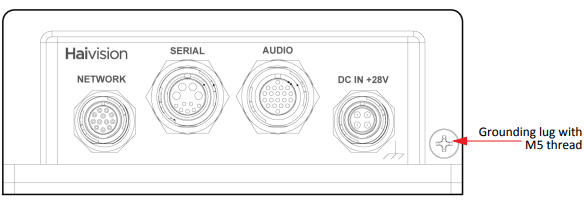

    XCR Grounding Lug


    The chassis must be properly grounded in order to provide protection against lightning strikes and other power surges.
