Configuring Audio Encoders

From the Audio Encoder pages, you can configure either four or eight independent audio encoders to apply to streams (depending on whether the encoder is single or dual channel). You can also start, mute, and stop each audio encoder, as well as display statistics for the encoder.

Note

The Makito X SDI and Makito X DVI blades are capable of encoding up to 16 channels of audio in channel pair groups: 16 for dual-channel SDI, 8 for single-channel SDI, 2 for DVI-D, and 2 for Analog audio in any combination.

Audio Encoders List View

To open the Audio Encoders List View:

  1. On the Streaming page, click General Settings on the navigation bar and Audio Encoders on the sidebar.
    The Audio Encoders List View opens.

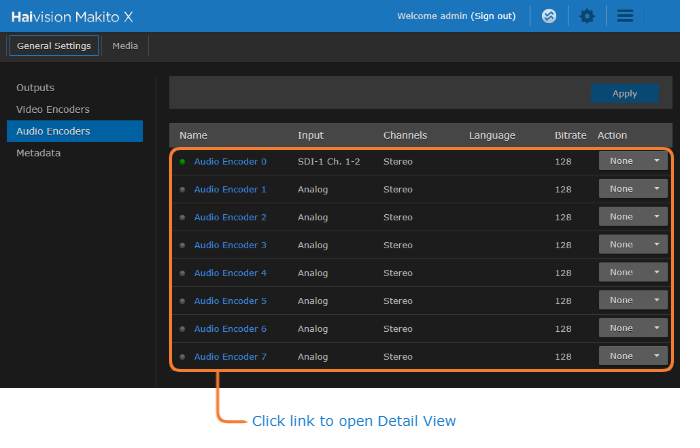

    The Audio Encoders List View displays the status LED, Name, Input, Channel Mode, Language, and Bitrate for each audio encoder. It also provides an option for you to either start, stop, or mute each input.
    • To view details or modify the audio settings for an encoder, click a link in the table to open the Audio Encoder Detail View.
    • To change the status for an encoder, click the drop-down list under Action and select either Start or Stop (as applicable), or Mute.
  2. To apply your changes, click Apply.
