Analog Audio Input Connector
The Makito X HEVC Rugged with software version 2.2.1 or later supports two (2) input channels of analog audio.
The analog audio interface consists of four (4) mono inputs and one mono output (for talkback). This interface complies with the Intel High Definition Audio (HDA) specification.
The audio input channels support 48-kHz sample rates with 16-bit PCM data.
The audio input channels support up to 4.15Vpp (single ended) inputs. The input signal level is configurable from 2 to 8 dBu, with a default value of 6 dBu. The maximum input level of 8 dBu translates to a maximum value of 5.50Vpp.
Analog Audio Connector | ||
---|---|---|
On Unit | Mating Connector | |
Manufacturer | Hirose | Hirose |
Connector Type | Audio Connector | Audio Connector |
Part Number | LF13WBRB-20S | LF13WBP-20P |

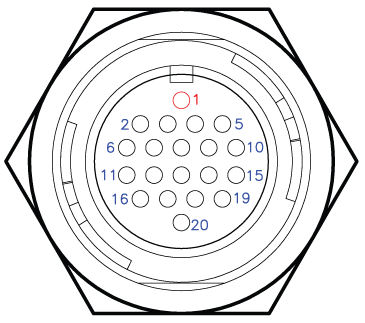

![Audio Input Pin Locations](../../__attachments/5476904/Makito_XCR_Audio_connector_close.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
Analog Audio Connector Pinout | |
---|---|
Contact # | Description |
1 | GND |
2 | AUDIO OUT (for talkback, future use) |
3 | GND |
4 | AUDIO IN CHANNEL 2 |
5 | GND |
6 | AUDIO IN CHANNEL 1 |
7 | GND |
8 | AUDIO IN CHANNEL 4 (future use) |
9 | GND |
10 | AUDIO IN CHANNEL 3 (future use) |
11–20 | N/C |

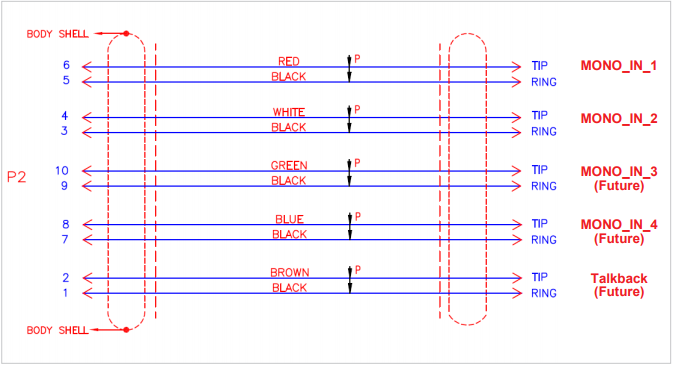

![Audio Connector Pinout Diagram](../../__attachments/5476904/audio%20conn%20pinout.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
For the connector and cable, see Step #5 in Connecting to the Network and Audio/Video Sources.
