Storage Mezzanine LED Status Indicators

The Makito X Storage Mezzanine LEDs are shown following.

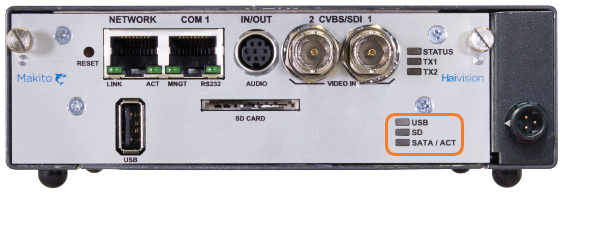

Fixed mSATA SSD

Fixed mSATA SSD LEDs

Description

Indication

USB

Off

LED remains off until drive has booted.

Green solid

Indicates drive is ready to use.

SD

Off

LED remains off until drive has booted.

Green solid

Indicates drive is ready to use.

SATA/ACT

Off

LED remains off until drive has booted.

Green solid

Indicates drive is ready to use.

Green blinking

SATA LED blinks briefly off when the SATA drive is being accessed.

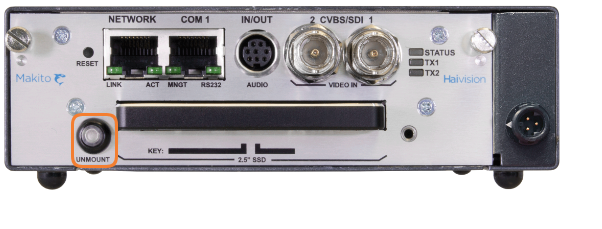

Removable SATA SSD

Removable SATA SSD LEDs

Description

Indication

Mount Status LED/Unmount Button

Off

SSD not mounted.

Blue solid

SSD mounted and ready to use.

Blue blinking

Blinks briefly off when the SATA drive is being accessed.

Blue blinking two times per second

Slow flash occurs when Unmount button is pushed. Blinking then stops, indicating that drive is unmounted and can be removed.

Note

To unmount SATA drive, press the Unmount button for three seconds.
