LED Status Indicators

The LED colors and flashing (blinking) speed indicate the status (operational state) of the Makito X encoder.

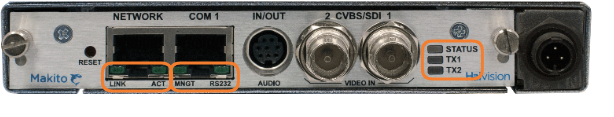

LED Status Indicators (Rear Panel)

LED Status Indicators (Rear Panel)

General
Function

Description

Indication

STATUS

No power

No power

Green fast blinking

Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault.

Green slow blinking

Booting/Initialization

Green solid

Booting/Initialization sequence is complete (No fault/OK).

Red fast blinking

Reset button is pressed for more than four seconds (Factory Reset enabled).

Red slow blinking

Reset button is released after the Red fast blinking state (executing Factory Reset).

TX1 / TX2 [SDI]

Off

No video encoder is configured to use a given BNC.

Note

Each TX LED is associated with the corresponding BNC connector.

Amber solid

Either of the conditions below is sufficient to turn the LED amber:

  • Encoder booting
  • Valid video input not detected (i.e., if you configure an encoder to use a BNC and there is no video input lock).

Green solid

Valid video input detected (i.e., you have signal lock).

DVI-A / DVI-D

Off

No valid signal is recognized; both LEDs are off.

Green solid

For DVI-D, a valid digital signal is plugged in.

For DVI-A, a valid analog/component signal is plugged in.

Network Port
Function

Description

Indication

LINK


OffNot connected
Green blinking once per secondConnected at 10 Mbps
Green blinking twice per secondConnected at 100 Mbps
Green blinking three times per secondConnected at 1000 Mbps
ACT

OffNo activity
Green intermittentLittle activity (e.g., management). The LED should be lit when there is activity.
Green solidIntense activity (e.g., transmitting video traffic)
COM1 Port
Function

Description

Indication

MNGTOffPort configured in Metadata Capture Mode
Green solidPort configured in Management Mode
RS232OffPort configured in RS-422
Green solidPort configured in RS-232
