Enclosure Front Panel

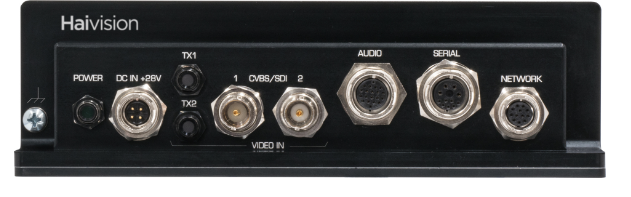

The Makito X HEVC Rugged enclosure provides rugged connectors for connecting the encoder's Video, Audio, Serial, and Power inputs, as well as the Network interface. All connectors are located on the front panel, as well as three LEDs that indicate power and video encoding status.

The following tables list the encoder connectors and LEDs:

Connectors

Connector

Description

Number of Contacts

Power Entry ConnectorDC IN +28V Power Connector Hirose P/N LF10WBRB – 4P4
Video Input Connectors2X Coax BNC Jack Amphenol P/N 112235-121 per coax

Analog Audio Input Connector

Hirose P/N LF13WBRB – 20S

20

Serial Connector

Hirose P/N LF13WBRB – 11S

11

Ethernet Connector

Hirose P/N LF10WBRB – 12S

12

Note

Hirose Cable Assemblies: Cabling must be done using the Hirose LF Series Connector Termination and Assembly Instructions.

LED Status Indicators
LEDDescriptionIndication
POWERPower StatusGreen when power is ON
TX1Video Encoder StatusBi-color (Green or Amber) Green when video detected; amber when no video detected (Channel 1)
TX2Video Encoder StatusBi-color (Green or Amber) Green when video detected; amber when no video detected (Channel 2)
