Connecting the BNC/S-Video Interface (Makito X SDI)

Note

The same BNC connector is used for Composite and Serial Digital Interface (SDI) Video Input and Embedded Digital Audio Input.

To connect the Makito X SDI Audio/Video Interface:

  1. Video In: Connect your Video Source cable(s) to one or both of the encoder's Video Inputs, using the BNC connectors:
    • Composite (CVBS) Video
    • SDI Video/Audio (either SD, HD, or 3G-SDI)
  2. Analog Audio In: Connect your Audio Source cable to the encoder's 8-pin Mini-DIN connector (shown below).
    • For unbalanced audio, use the 8-pin audio to 3-RCA female cable adapter (included in the package, shown below).
    • A balanced audio cable adapter is available from Haivision upon request. (See Audio Breakout Cables.)

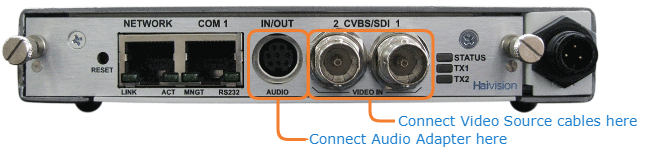

SDI-I Input Connections (#S/B-292E-HDSDI2)

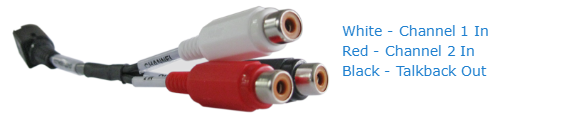

Audio to RCA Female Cable Adapter (Unbalanced)






Note

Selection between analog and digital (SDI) audio may be done via the Web interface or the Command Line Interface (CLI).
