Power Connector Pinouts
The power connectors for the Single-Height and Dual-Height Chassis have the following pinouts:

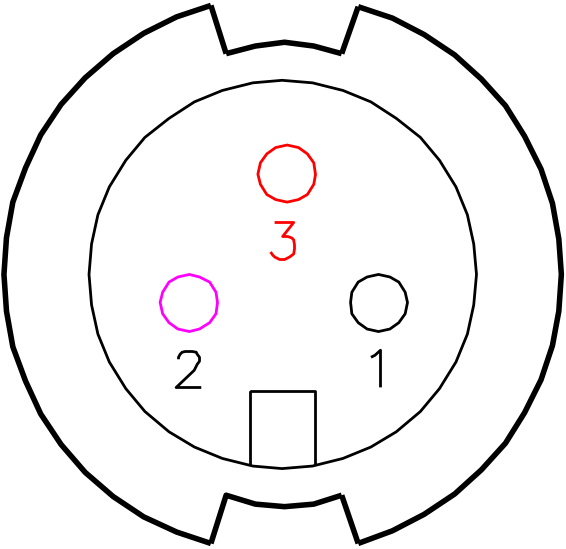

Single-Height - Power Connector
| Pin # | Description (Conxall P/N 16282-3SG-318) | |
|---|---|---|
| 1 | Reserved / Not Connected |  |
| 2 | Ground | |
| 3 | VCC=+12VDC | |

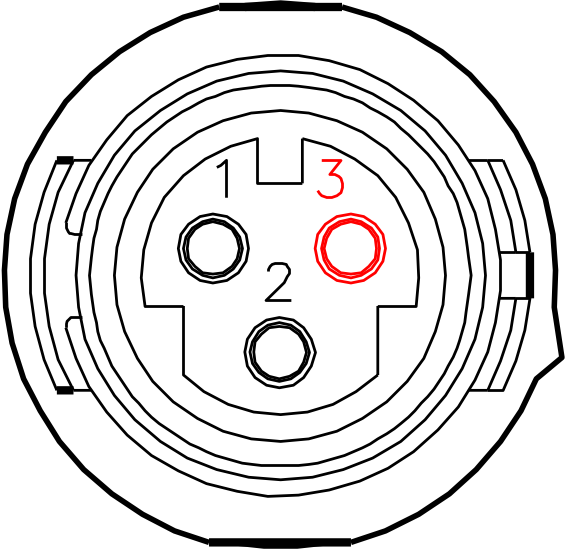

Dual-Height - Power Connector
| Pin # | Description (Hirose P/N HR30-6R-3P(71)) | |
|---|---|---|
| 1 | Reserved / Not Connected |  |
| 2 | Ground | |
| 3 | 12VDC (+V) | |
