Configuring Analog Audio Output

On the Makito X dual channel decoder, two streams are received and can be displayed on either SDI video port. Analog audio can be selected from embedded channels on either stream. Both Analog Audio and Embedded Digital Audio are active.

The final configuration step is to bind the analog audio output to either the SDI1 or SDI2 video decoder and configure the audio decoder settings.

To configure the analog audio output:

1. Click AUDIO on the output interface navigation bar.

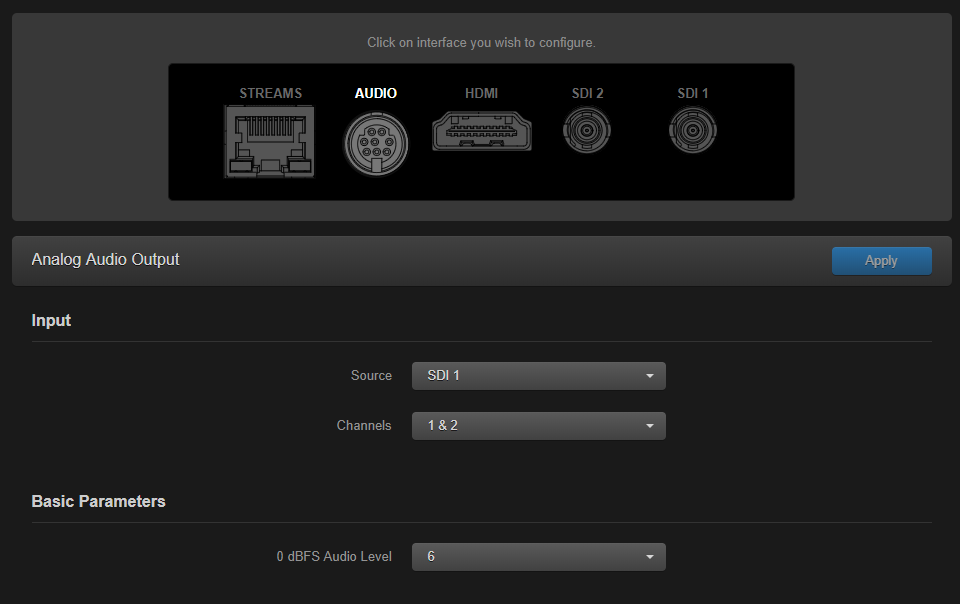

2. On the Audio Audio Output page, select the Input Source for the analog audio, either SDI1 or SDI2.




3. Select the channel pairs for the output, either 1&2, 3&4, 5&6, or 7&8. For details, see Analog Audio Settings in the User’s Guide.



   Note

   Channel pairs 9&10, 11&12, 13&14, and 15&16 are also available when the decoder is a single channel variant.
4. To apply your changes, click Apply.
   Analog audio output is started or stopped depending on the status of the SDI1 or SDI2 video decoder.
