Chassis Styles
The Makito X decoder is available in the following chassis styles:
as an ultra-compact appliance (single-height or dual-height) for single or dual-channel decoding.
as a blade within a 1RU chassis (MB6X) that can contain up to six single-height or three dual-height Haivision encoder/decoder blades.
- as a blade within a 4RU chassis (MB21) that can contain up to 21 single-height or ten dual-height Haivision encoder/decoder blades.
- the Makito X "Harsh" semi-ruggedized, industrial SDI decoder appliance (H.264-only).
The Makito X single-height and dual-height chassis appliances are shown below, followed by the MB21 and MB6X chassis and Makito X Harsh decoder.

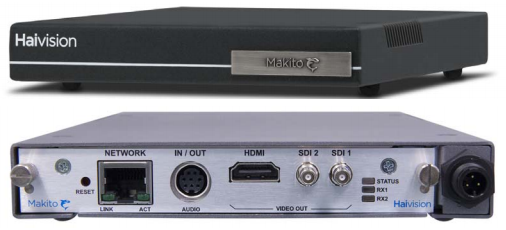

Makito X Decoder (Single-Height Chassis Front and Rear Views)

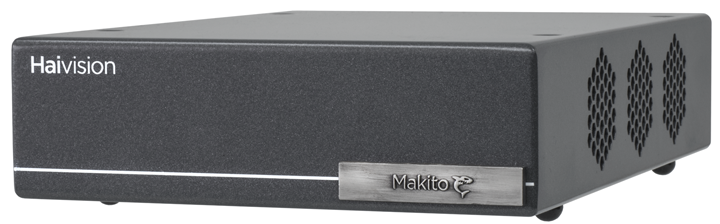

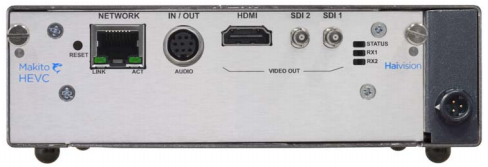

Makito X HEVC Decoder (Dual-Height Chassis Front and Rear Views )

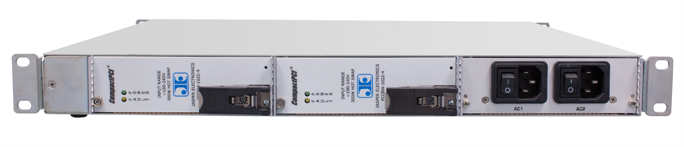

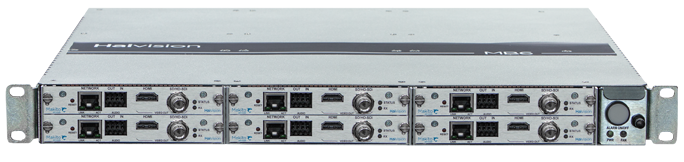

MB6X Multichannel Chassis ( Front and Rear Views, #MB6X-RAC)
![MB6X Multichannel Chassis (Front View)](../../__attachments/5476071/MB6_Front.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
![MB6X Multichannel Chassis (Rear View)](../../__attachments/5476071/MB6_AC_Back.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
Note
The MB6X is available with a single AC, DC, or medical grade AC power supply. For details, please refer to the MB6 Chassis Installation Guide.

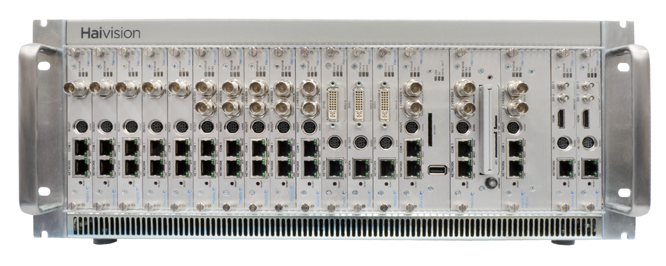

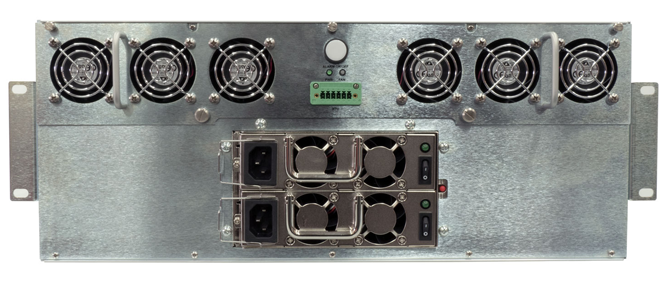

MB21 Multichannel Chassis ( Front and Rear Views, #F-MB21X-R )
![MB21 Multichannel Chassis (Front View)](../../__attachments/5476071/MB21_Front.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
![MB21 Multichannel Chassis (Rear View)](../../__attachments/5476071/F-MB21X-R_Rear.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)

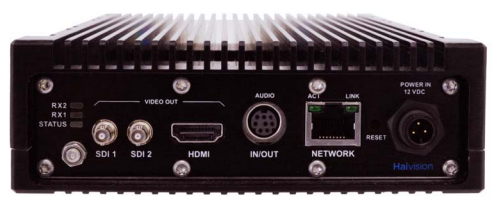

Makito X Harsh (Dual SDI Decoder Appliance)
Note
For instructions on installing the Makito X Harsh decoder, please refer to the Makito XH (Harsh) Installation Guide.
