Power Connector Pinouts

The power connectors for the Single-Height and Dual-Height Chassis have the following pinouts:

Single-Height - Power Connector

Pin #Description (Conxall P/N 16282-3SG-318)
1Reserved / Not Connected

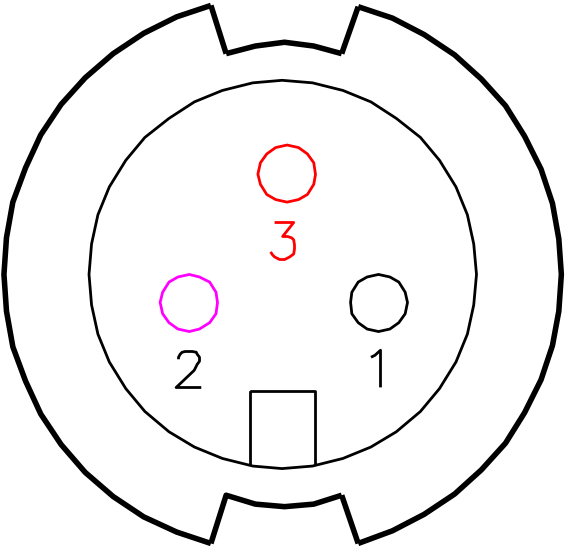

Single-Height Power Connector


2Ground
3VCC=+12VDC

Dual-Height - Power Connector

Pin #Description (Hirose P/N HR30-6R-3P(71))
1Reserved / Not Connected

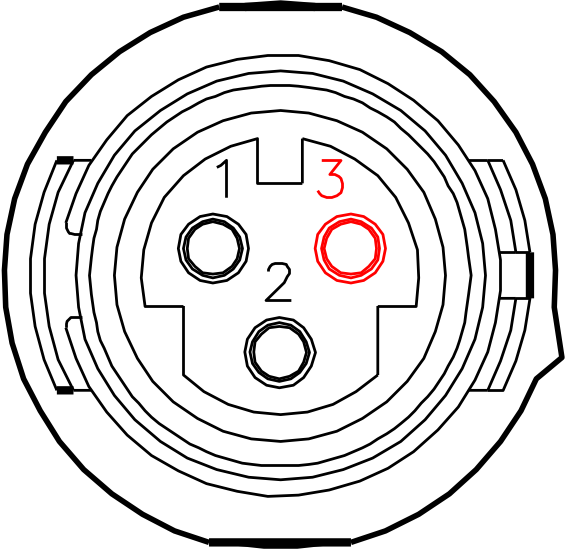

Dual-Height Power Connector


2Ground
312VDC (+V)
