LED Status Indicators

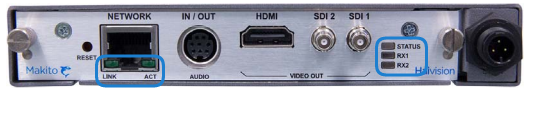

The LED colors and flashing (blinking) speed indicate the status (operational state) of the Makito X decoder.

General

Function	Color	Description	Indication
Status	No power	Off	No power
		Green fast blinking	Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault.
		Green slow blinking	Booting/Initialization
		Green solid	Booting/Initialization sequence is complete (No fault/OK).
		Red fast blinking	Reset button is pressed for more than four seconds (Factory Reset enabled).
		Red slow blinking	Reset button is released after the Red fast blinking state (executing Factory Reset).
RX1/RX2	Amber/Green	Off	No active stream is being decoded
		Amber Solid	At least one of the conditions below is sufficient to turn on the LED Amber: Decoder booting No video stream is being decoded No audio stream is being decoded
		Green Solid	When all the conditions below are met: A video stream is being decoded An audio stream is being decoded

Network Port

Function	Color	Description	Indication
LINK	Green	Off	Not connected
		Green Blinking once per second	Connected at 10 Mbps
		Green Blinking twice per second	Connected at 100 Mbps
		Green Blinking three times per second	Connected at 1000 Mbps
ACT	Green	Off	No Acitvity
		Green Intermittent	Little activity (e.g., management). The LED should be lit when there is activity.
		Green Solid	Intense Activity (e.g., transmitting video traffic)
