Analog Audio Interface

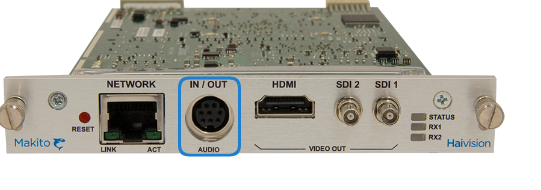

The Makito X analog audio interface consists of a single 8-pin Mini-DIN connector used for two-channel balanced/unbalanced analog audio output (one stereo pair) and a mono audio input (for Audio Talkback).

An adapter is required to interface with the audio port. An RCA cable adapter for unbalanced audio is included in the package. An adapter for balanced audio may be ordered from Haivision.

For the pinout, see Audio Connector Pinout.

Related Topics

• Connecting the Decoder to A/V Displays

• Audio Talkback

• Audio Breakout Cables
