Set Up a Test Stream

Setting up a test stream requires that you have an active video source connected to the Makito X4 Encoder. You will need to configure an encoding instance based on your video source, and then configure an output stream for that encoder. You can also (optionally) select analog audio input if you have connected the encoder to an analog audio source (via the encoder’s Audio/Serial connector).

The following sections summarize these steps.

For detailed information, refer to Configuring Video Encoders, Configuring Audio Encoders and Configuring Streams (in the User's Guide).

Video Encoders

To configure an encoding instance:

1. Click Streaming on the sidebar, and select the Video Encoders tab.

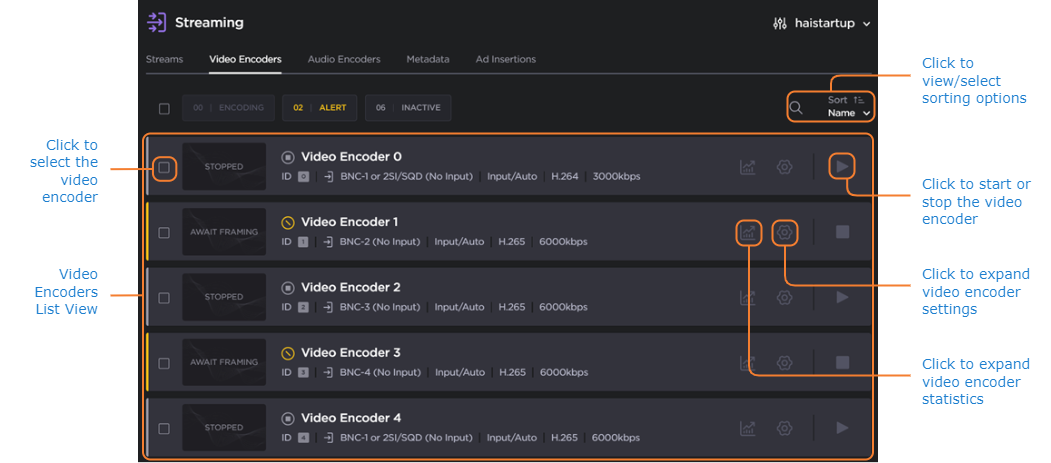

   The Video Encoders List View opens.


2. Click the Settings icon

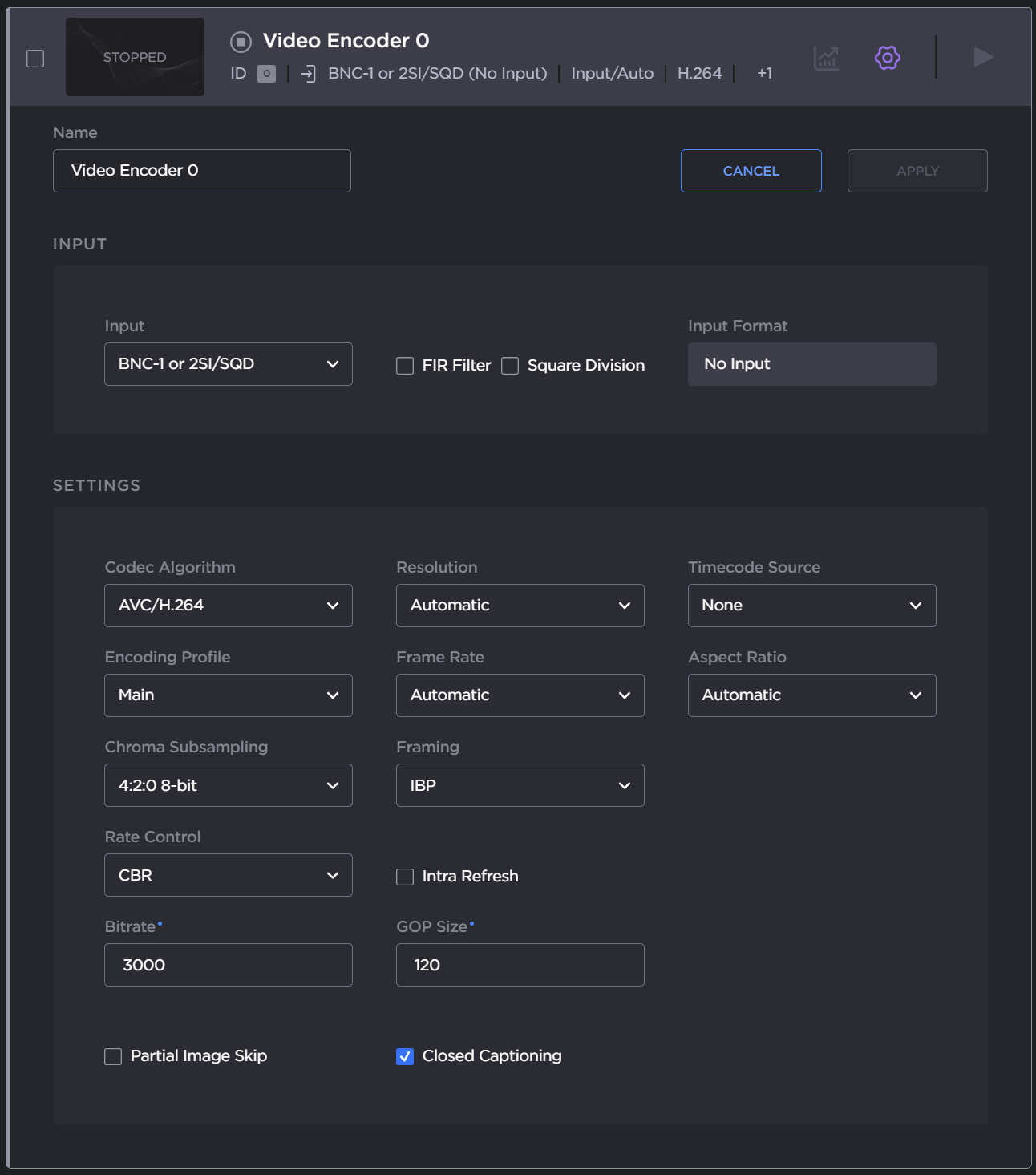

   on the encoder panel to open the Video Encoder Detail View, displaying the settings for the selected video encoder.




3. To configure the encoder, select or enter the new value(s) in the appropriate fields (see Configuring Video Encoders in the User's Guide).

4. To enable your changes, click Apply.


Audio Encoders

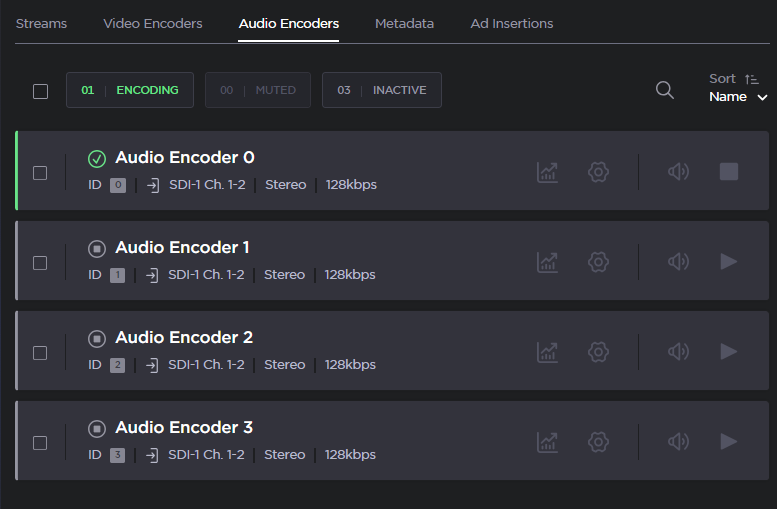

1. Select the Audio Encoders tab.
   The Audio Encoders List View opens.




2. To modify audio encoder settings, click the Settings icon



   on the encoder panel to open the Audio Encoder Detail View.

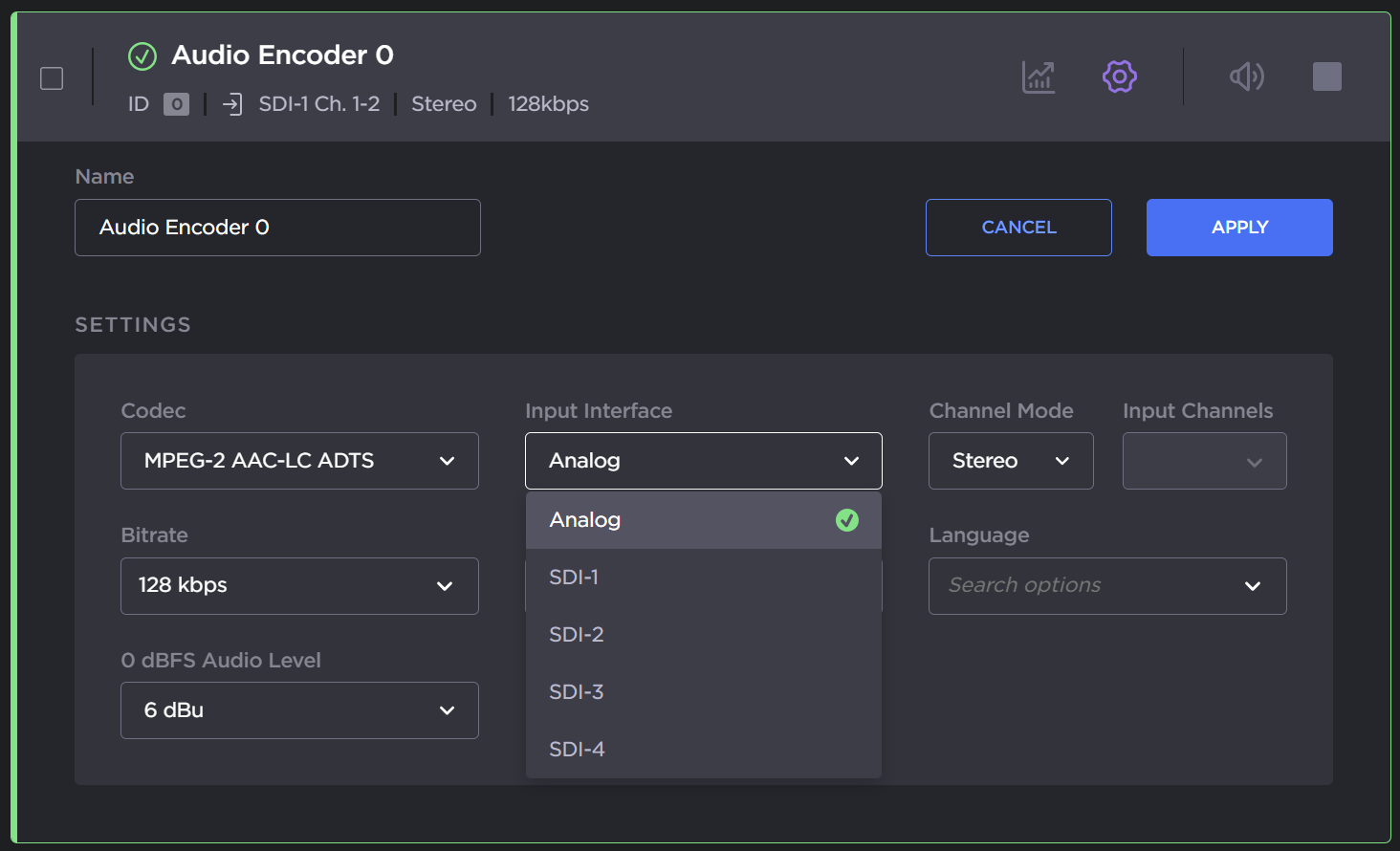

3. Select Analog for the Input Interface.






4. From here, you can modify the remaining audio encoder settings. For details, see Audio Encoder Settings in the User's Guide.

5. To apply your changes, click Apply.



   Tip

   Use the icons on the encoder panel to view Statistics



   , Mute/Unmute



   /



   , or Start/Stop



   /



   the audio encoder.

Streaming Outputs

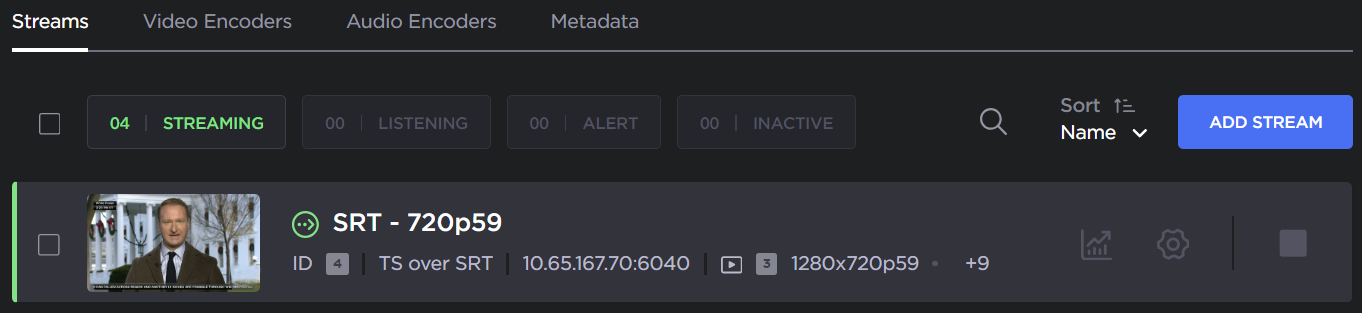

1. Select the Streams tab.
   The Output Streams List View opens.




2. To add an output stream, click the Add Stream button.

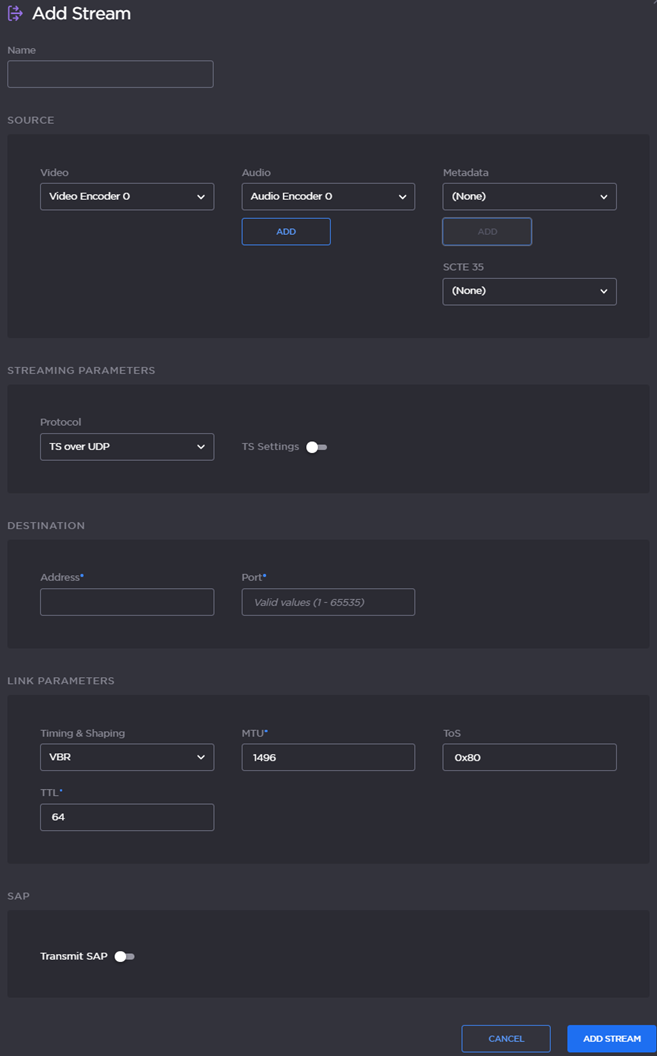

   The Add Stream page opens.




3. Type a Name for the stream, and under Source, select the video and audio encoders you started in the previous steps (above).
4. To add metadata to the stream, select the Metadata source, and (optionally) select the encapsulation type (Data Carriage).
5. To enable ad insertions, select an ad insertion source from the SCTE 35 dropdown menu.
6. Under Streaming Parameters, select TS over UDP for the Protocol.

7. Under Destination, type in a valid multicast Address (e.g., 239.192.2.3) and Port number (e.g., 2000).



   Note

   The Multicast address range is from 224.0.0.0 to 239.255.255.255. Multicast addresses from 224.0.0.0 to 224.0.0.255 are reserved for multicast maintenance protocols and should not be used by streaming sessions. We recommend that you use a multicast address from the Organization-Local scope (239.192.0.0/14).

8. To apply your changes and start streaming, click Add Stream.



   Note

   The changes will take effect immediately but will be lost after a reboot. For information on saving configuration settings, refer to Saving and Loading Presets in the User’s Guide.
