Product Numbers
Makito X4 Single Channel Encoder
| B-MX4E-SDI1-UHD | Makito X4 SDI Encoder Blade; H.264/AVC & H.265/HEVC IP Video Encoder; Single channel 12G/3G/HD/SD-SDI with UHD & ST 2110 |
| B-MX4E-SDI1-UHD-ISR | Makito X4 SDI Encoder Blade; H.264/AVC & H.265/HEVC IP Video Encoder; Single channel 12G/3G/HD/SD-SDI with UHD & ST 2110 & KLV Metadata |
| S-MX4E-SDI1-UHD | Makito X4 SDI Encoder Appliance; H.264/AVC & H.265/HEVC IP Video Encoder; Single channel 12G/3G/HD/SD-SDI with UHD & ST 2110 |
| S-MX4E-SDI1-UHD-ISR | Makito X4 SDI Encoder Appliance; H.264/AVC & H.265/HEVC IP Video Encoder; Single channel 12G/3G/HD/SD-SDI with UHD & ST 2110 & KLV Metadata |
Accessory Product Numbers
The power connectors for the Single-Height Chassis have the following pinout:

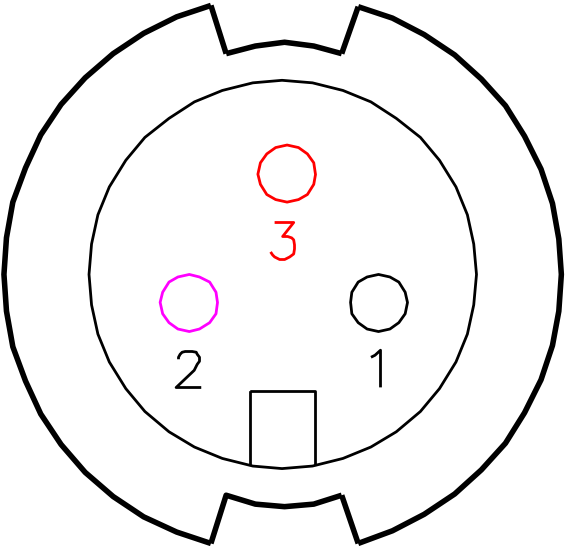

Single-Height - Power Connector
| Pin # | Description (Conxall P/N 16282-3SG-318) | |
|---|---|---|
| 1 | Reserved / Not Connected |  |
| 2 | Ground | |
| 3 | VCC=+12VDC | |
