Chassis Styles

The Makito X4 is available in the following chassis styles:

  • as an ultra-compact appliance for single, dual or quad channel encoding.
  • as a blade within a 1RU chassis (MB6X) that can contain up to six single-height or three dual-height Makito X Series or other Haivision encoder/decoder blades.
  • as a blade within a 4RU chassis (MB21) that can contain up to 21 single-height or ten dual-height Makito X Series or other Haivision encoder/decoder blades.

In addition, the following appliances are available:

  • Makito X4 Rugged Video Encoder – compact, rugged, quad-input H.264 and HEVC video encoder for real-time delivery of motion imagery for ISR platforms.
  • Makito X4 Single Channel Encoder – single-input H.264 and HEVC video encoder for single channel encoding in low density deployments.

The Makito X4 appliance and blade, MB6X and MB21 chassis, Makito X4 Rugged Encoder, and Makito X4 Single Channel Encoder are shown in the following figures.

Makito X4 Encoder (#S-MX4E-SDI4)

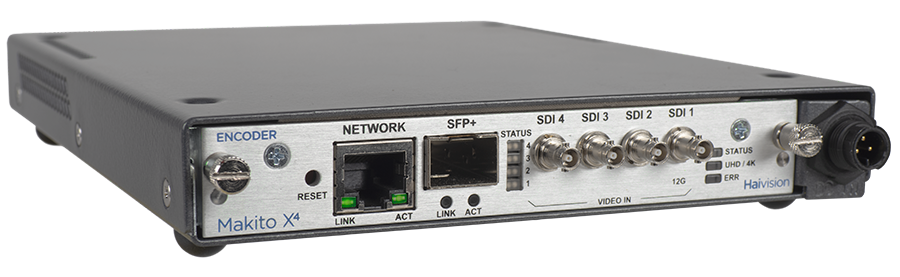

Makito X4 Encoder (appliance front)

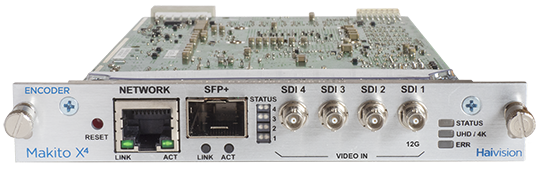

Makito X4 Encoder blade (#B-MX4E-SDI4)




MB6X Multichannel Chassis (Front and Rear Views, #MB6X-RAC)

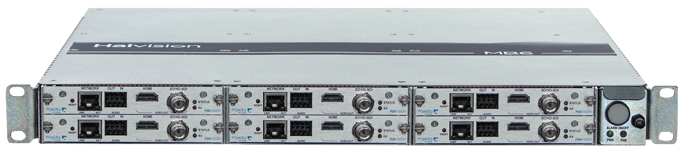

MB6X Multichannel Chassis (Front View)

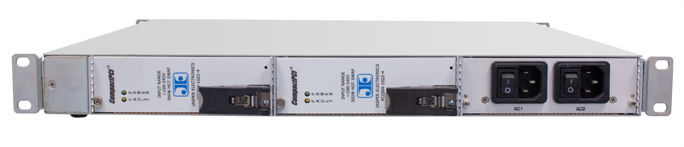

MB6X Multichannel Chassis (Rear View)

Note

The MB6X is available with a single AC, DC, or medical grade AC power supply. For details, please refer to the MB6 Chassis Installation Guide .

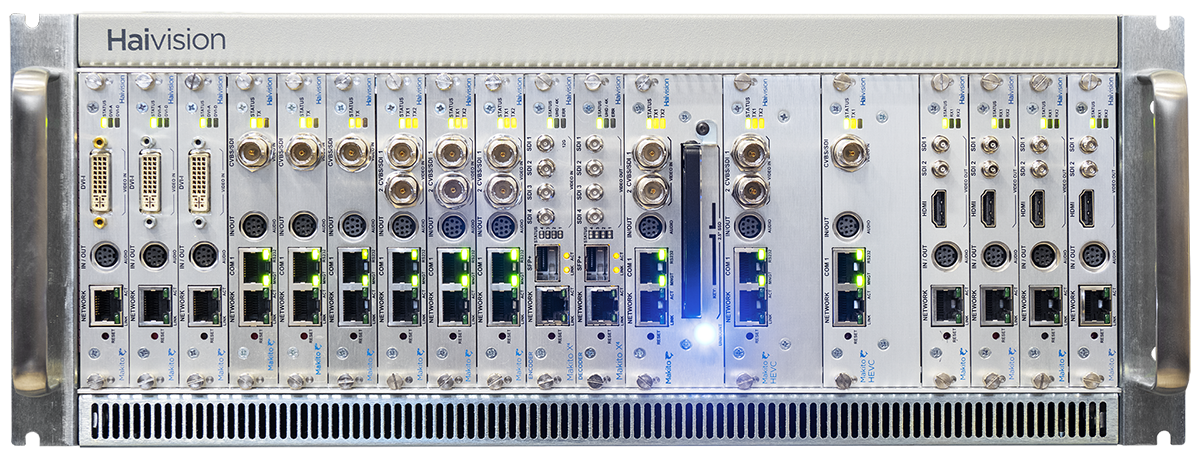

MB21 Multichannel Chassis (Front and Rear Views, #F-MB21X-R)

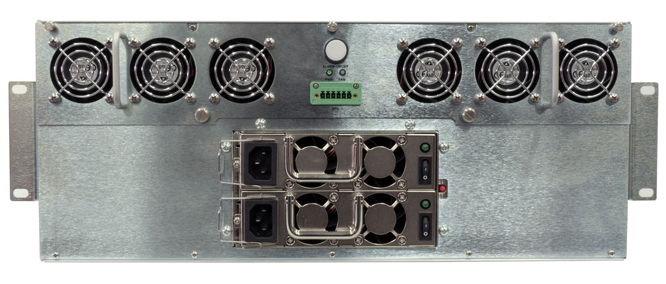

MB21 Multichannel Chassis (Rear View)

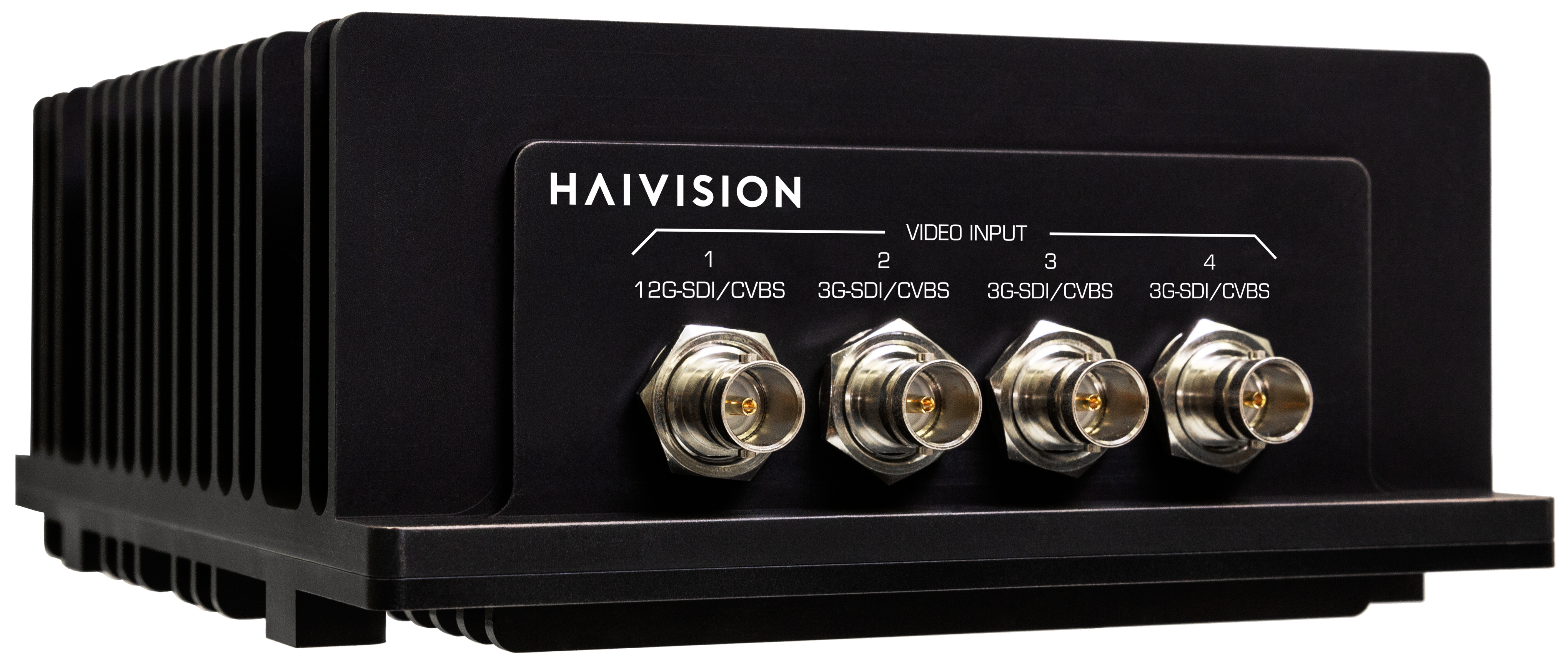

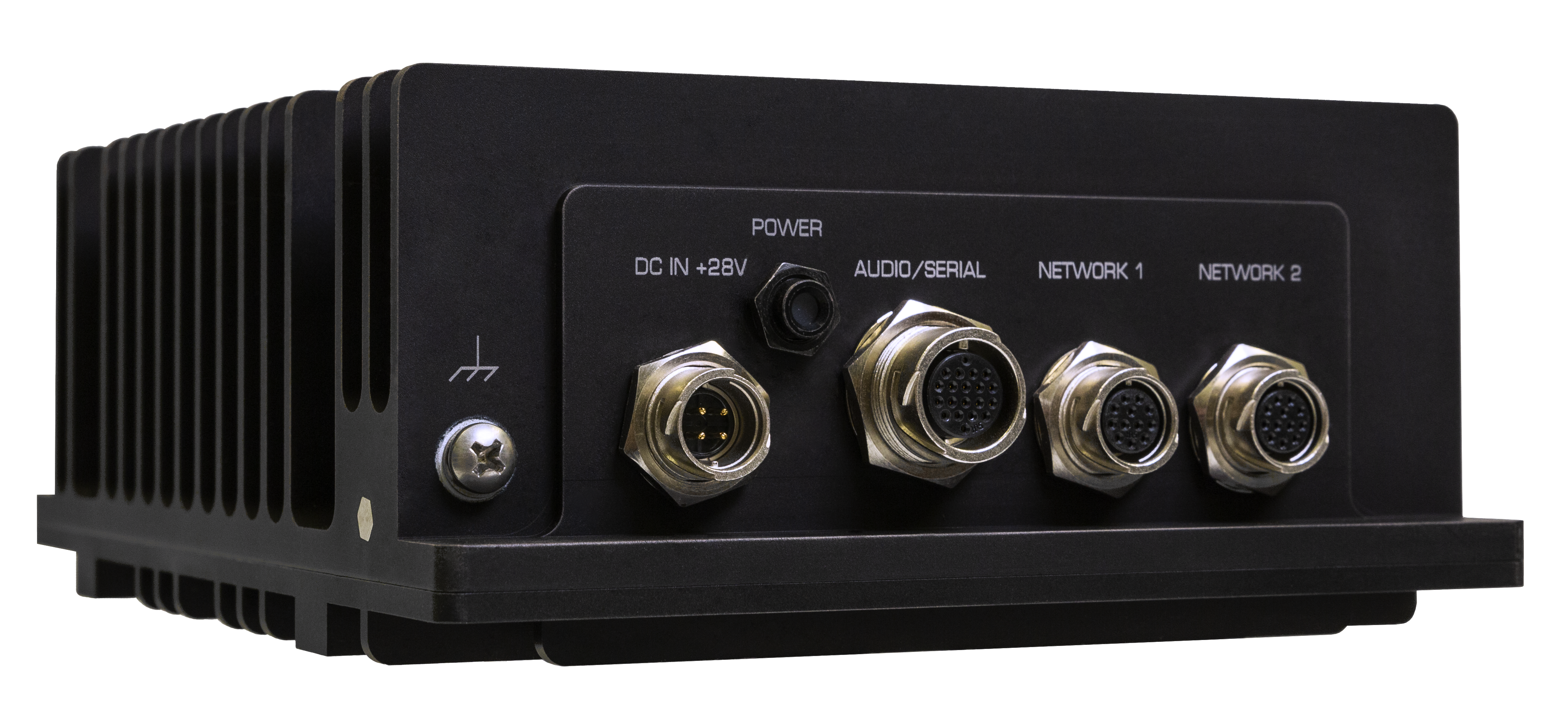

Makito X4 Rugged Encoder (#S-MX4E-R-SDI4-ISR)

Note

For details, please refer to the Makito X4 Rugged Encoder Installation Guide.

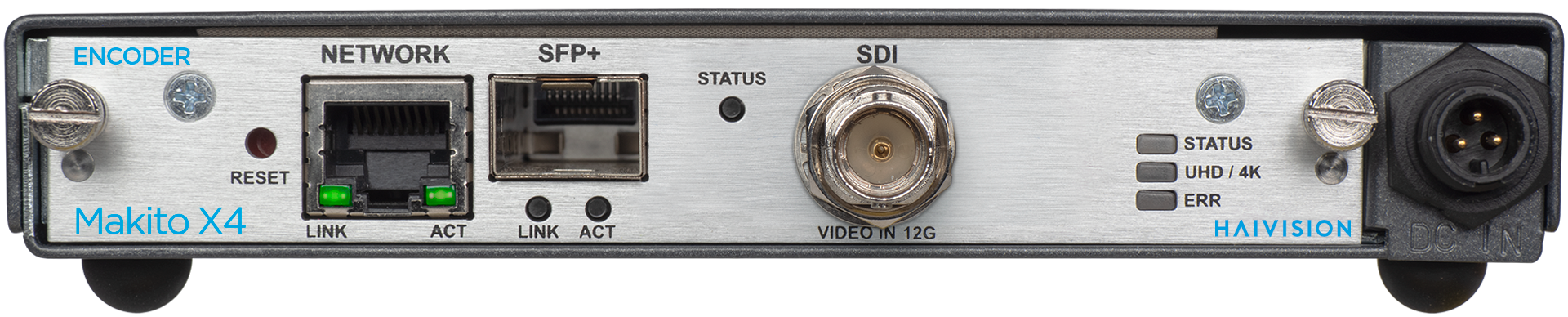

Makito X4 Single Channel Encoder (#S-MX4E-SDI1-UHD

Note

For details, please refer to the Makito X4 Single Channel Encoder Installation Guide.
