Power Cable - Two-Board Kit
The kit includes two cards: CPU and Interface (Carrier) card only. The power cable (shown below) connects to J13 (on the interface card) and supplies 12V DC.
Customers must provide their own power supply. The power supply must supply +12 V DC +/-5%, ripple +/-5%, minimum wattage 25W DC.

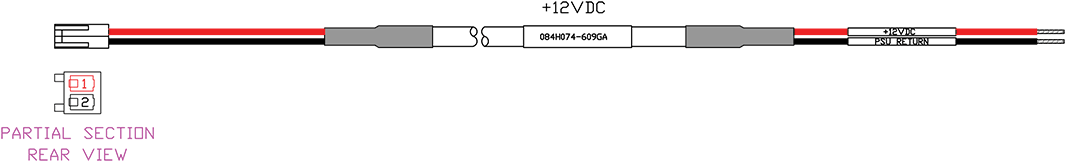

Cable for (Customer-Provided) Power Supply
Haivision p/n #084H074-609G
Connect to J13
Power Connector
Power Connector | ||
|---|---|---|
On Unit | Mating Connector | |
Manufacturer | WURTH | WURTH |
Connector Type | Power In Connector | Power In Connector |
Part Number | 61900211121 | 61900211621 |
Power Connector Pinout | ||
|---|---|---|
Contact # | Description | Wire Color |
1 | +12VDC | Red |
2 | POWER GND | Black |
12V Power Cable Wiring Diagram
