LED Cable - Three-Board Kit
The three-board kit includes one internal LED cable assembly.
Haivision p/n #084H082-602G
Connect the LED cable assembly (Haivision p/n #084H082-602G, included in the kit) to PSU J10.
LED Connector
LED Connector | ||
|---|---|---|
On Unit | Mating Connector | |
Manufacturer | MOLEX | MOLEX |
Part Number | 874370243 | 874390200 |
LED Connector Pinout | ||
|---|---|---|
Contact # | Description | Wire Color |
1 (Green Anode) | LED+ | Red |
2 (Red Anode) | LED GND | Black |

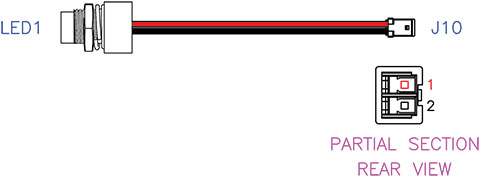

LED Wiring Diagram
