Chassis Styles
The Makito X4 is available in the following chassis styles:
- as an ultra-compact appliance for single, dual or quad channel encoding.
- as a blade within a 1RU chassis (MB6X) that can contain up to six single-height or three dual-height Makito X Series or other Haivision encoder/decoder blades.
- as a blade within a 4RU chassis (MB21) that can contain up to 21 single-height or ten dual-height Makito X Series or other Haivision encoder/decoder blades.
In addition, the following ruggedized appliance is available:
- Makito X4 Rugged Video Encoder -- compact, rugged, quad-input H.264 and HEVC video encoder for real-time delivery of motion imagery for ISR platforms.
The Makito X4 appliance and blade, MB6X and MB21 chassis, and Makito X4 Rugged Encoder are shown in the following figures.

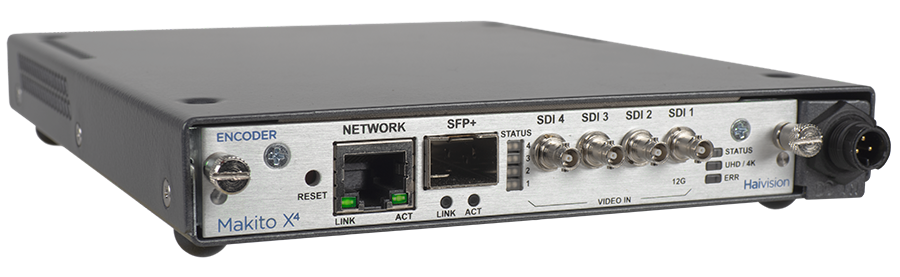

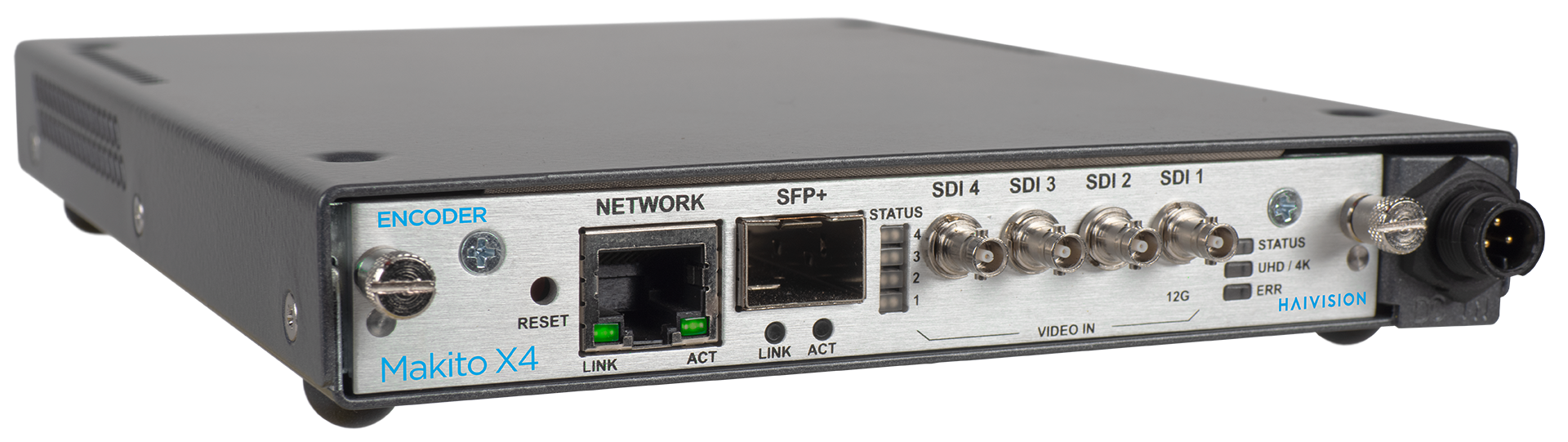

![Makito X4 Encoder (appliance front)](../../__attachments/5483819/MX4_Encoder_FR2.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)

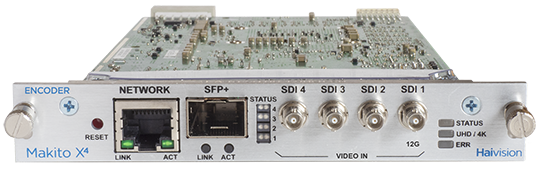

![](../../__attachments/5483568/MX4E_Blade_Front_Perspective_sml.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
MB6X Multichannel Chassis (Front and Rear Views, #MB6X-RAC)

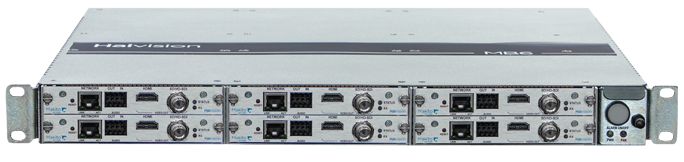

![MB6X Multichannel Chassis (Front View)](../../__attachments/5474841/MB6_Front.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)

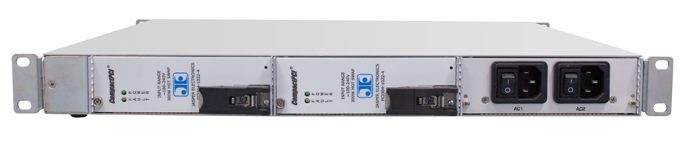

![MB6X Multichannel Chassis (Rear View)](../../__attachments/5474841/MB6_AC_Back.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
Note
The MB6X is available with a single AC, DC, or medical grade AC power supply. For details, please refer to the MB6 Chassis Installation Guide .
MB21 Multichannel Chassis (Front and Rear Views, #F-MB21X-R)

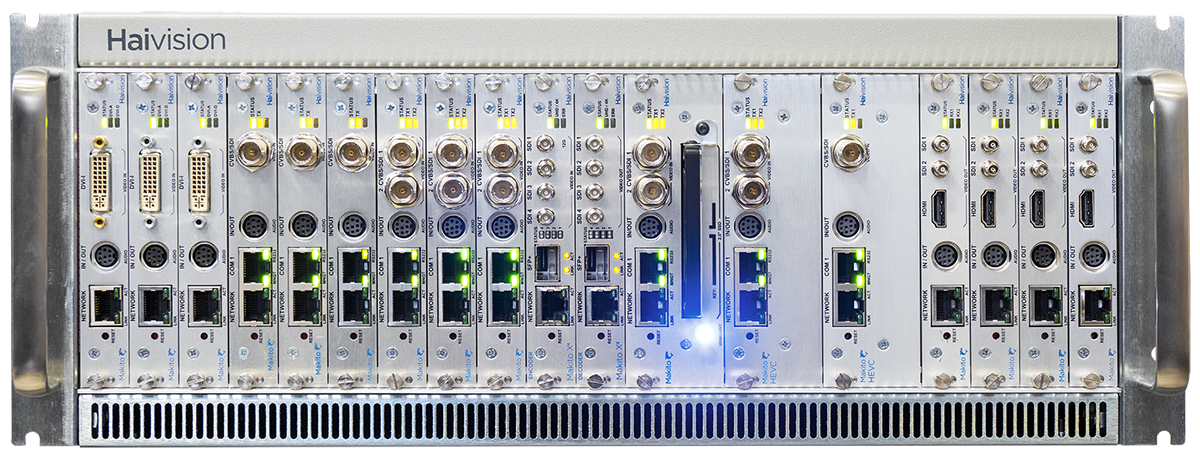

![](../../__attachments/5474841/MB21_MX4Enc_Dec.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)

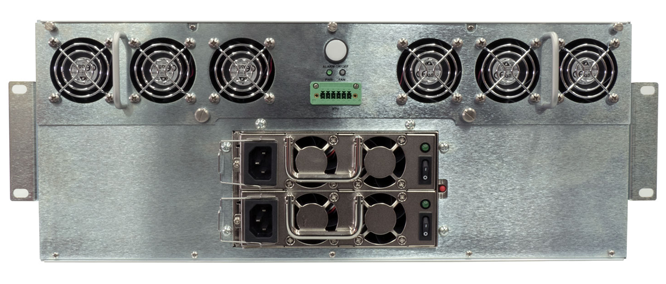

![MB21 Multichannel Chassis (Rear View)](../../__attachments/5474841/F-MB21X-R_Rear.png?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)

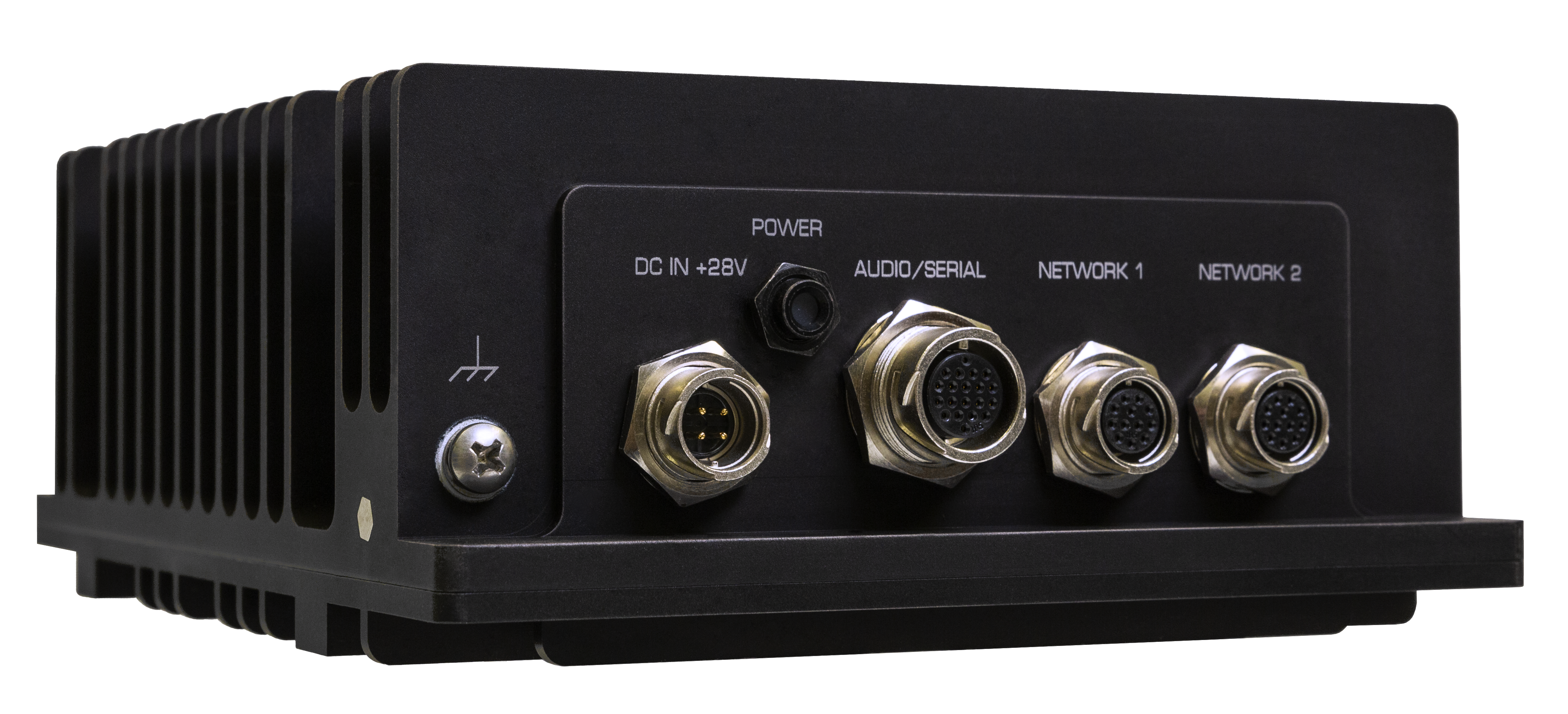

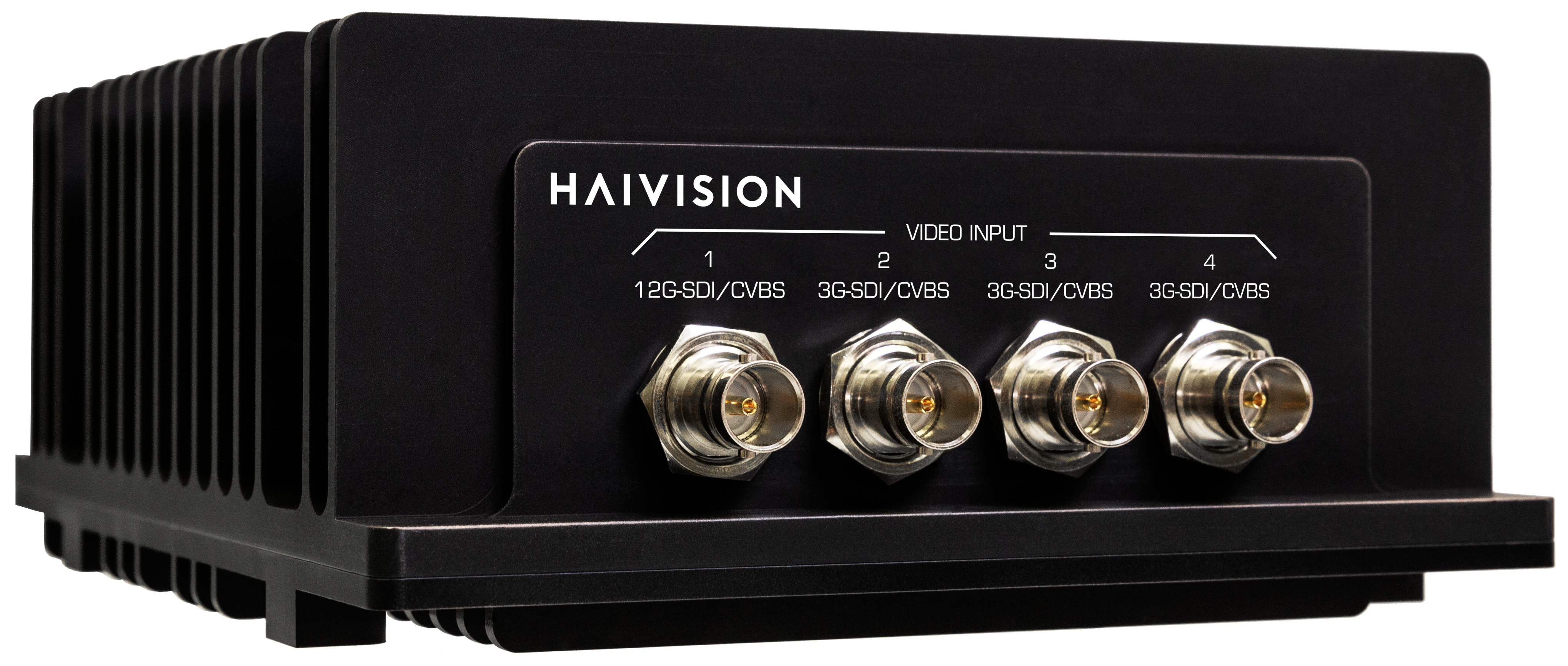

![](../../__attachments/5484071/Makito-X4-Rugged_FR_sml.jpg?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
![](../../__attachments/5484071/Makito-X4-Rugged_BR_sml.jpg?inst-v=f5b8499f-2951-4d9b-89e8-fef1c4d1f4cb)
Note
For details, please refer to the Makito X4 Rugged Encoder Installation Guide.
