Analog Audio Cable
Note
Analog audio (Interface (Carrier)" board J5) is reserved for future use.
The analog audio interface provides two (2) mono audio input signals and one mono audio output (for talkback, future use). The talkback output impedance is 75 Ω (Ohms). The signal level is 1 Vrms (or 2.2 dBu) (single ended).
The audio input channels support 48-kHz sample rates with 16-bit PCM data. The audio input channels support up to Vrms (or 2.2 dBu) (single ended) inputs. The input impedance of the audio input channels is 33 kOhms.

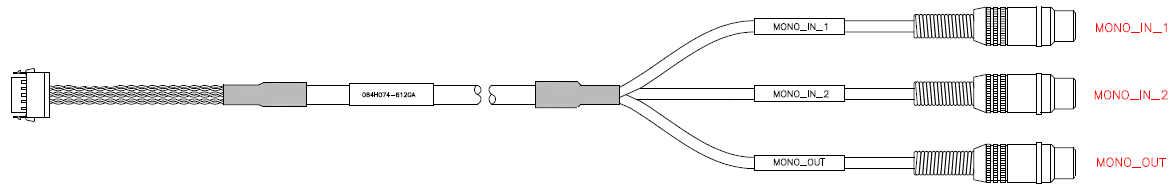

(Haivision p/n #084H074-613G) This cable is used for both Assembly Kit Options.
Analog Audio Connector

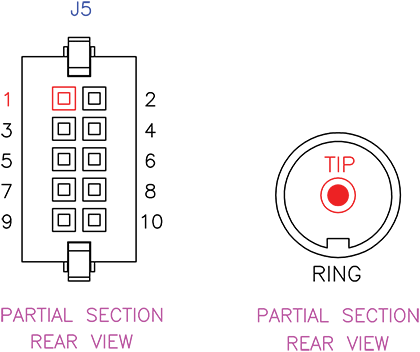

Following is the breakout cable pinout for the Audio input and output ports (Unbalanced only).
| Analog Audio Connector (J5) | ||
|---|---|---|
| On Unit | Mating Connector | |
| Manufacturer | SAMTEC | SAMTEC |
| Connector Type | Audio Connector | Audio Connector |
| Part Number | T2M-105-01-L-D-TH-WT | ISD2-05-D-M |
| Analog Audio Connector (J5) Pinout | |
|---|---|
| Contact # | Description |
| 1 | AUDIO OUT+ |
| 2 | AUDIO OUT- |
| 3 | AUDIO IN CH2+ |
| 4 | AUDIO IN CH2- |
| 5 | N/C |
| 6 | N/C |
| 7 | AUDIO IN CH1+ |
| 8 | AUDIO IN CH1- |
| 9 | N/C |
| 10 | N/C |

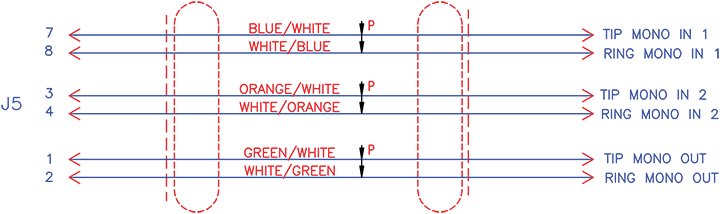

Audio Wiring Diagram
