System Status Information
From the System page, you can view system status information about the Makito X4 decoder, such as the operating system uptime, along with information about the hardware and software components. You can also:
- Change the Device Name
- Initiate blinking of the Status and TX LEDs (to help locate particular decoders in a lab or rack),
- Take a system snapshot,
- Reboot the decoder,
- Manage User Preferences.
The Status page is available to Operator and Guest users as well as Administrators.
To view status information:
- Click Settings on the side menu, and select the System tab.

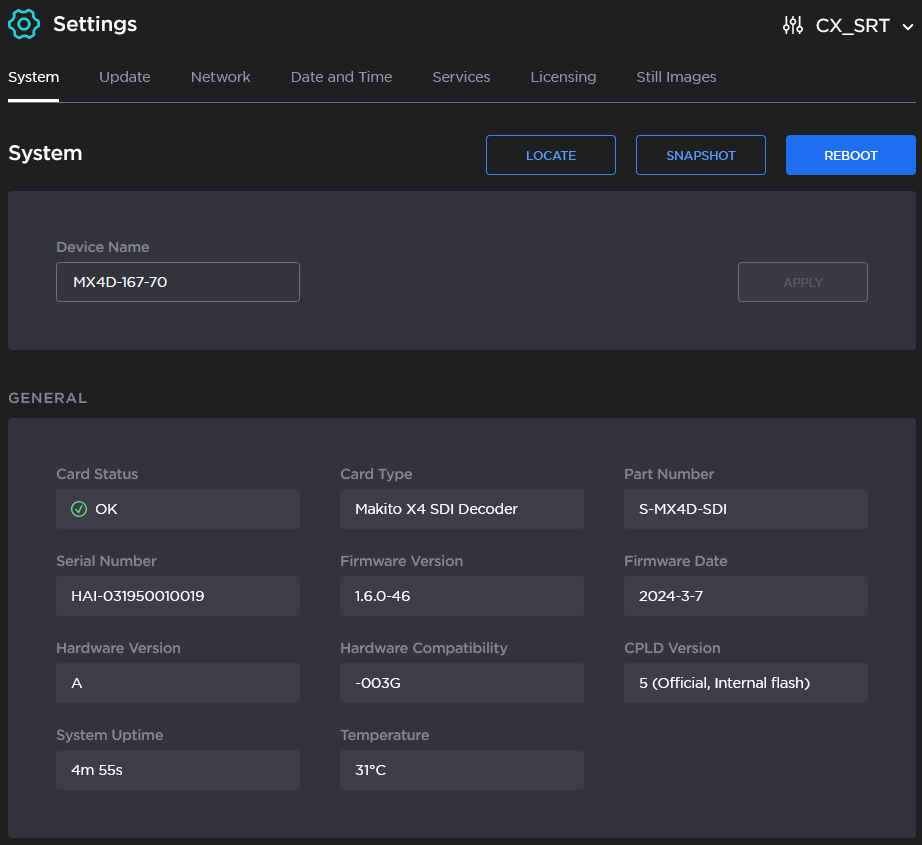

The System page opens.
- To change the device name, which is displayed in the browser tab, type a new name into the Device Name field and click Apply.
- The General system settings are read-only. For details, see System Settings.
- To display a snapshot of system information, click Snapshot. See Taking a System Snapshot.

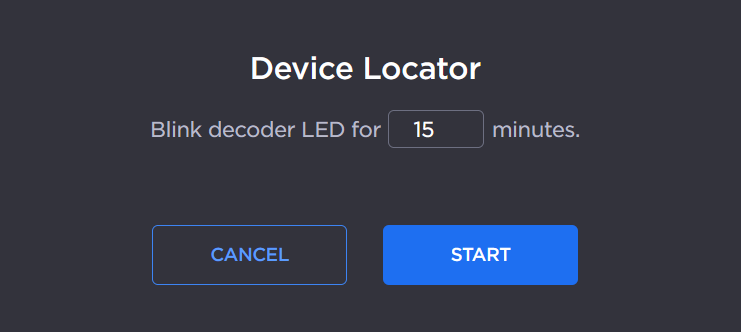

To initiate blinking of the Status and TX LEDs, click Locate. On the Device Locator dialog, adjust the time allowed to blink the decoder LEDs and click Start.
Note
The blinking can last from 1 minute to 1 hour; the default is 15 minutes.
- To reboot the decoder, click Reboot. See Rebooting the Decoder.
- Scroll down (when applicable) to configure User Preferences. For details, see User Preferences.
