Set Up Streams

View and configure the Decoder or Stream settings by clicking Streaming on the sidebar, and selecting either the Decoders or Streams tab.

The first step is to create one or more streams to map the decoder inputs to output interfaces.

To add a stream:

1. From the Streams page, click Add Stream.

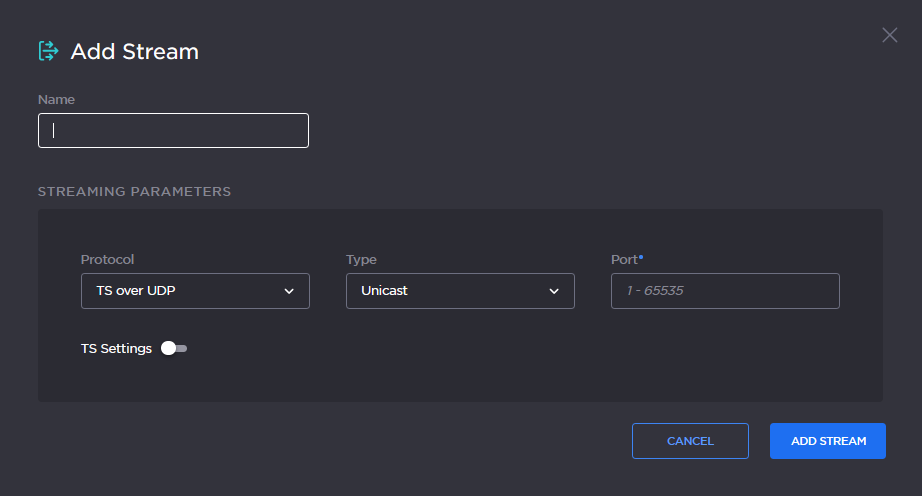

   The New Stream panel opens.




2. Type a name for the stream in the Name field.

3. Select the stream Protocol, for example, TS over UDP. To configure TS over SRT streams, see Configuring Secure Reliable Transport (SRT).

   To configure TS over SRT streams, see Configuring Secure Reliable Transport (SRT).

4. Select the stream Type, either Unicast or Multicast.

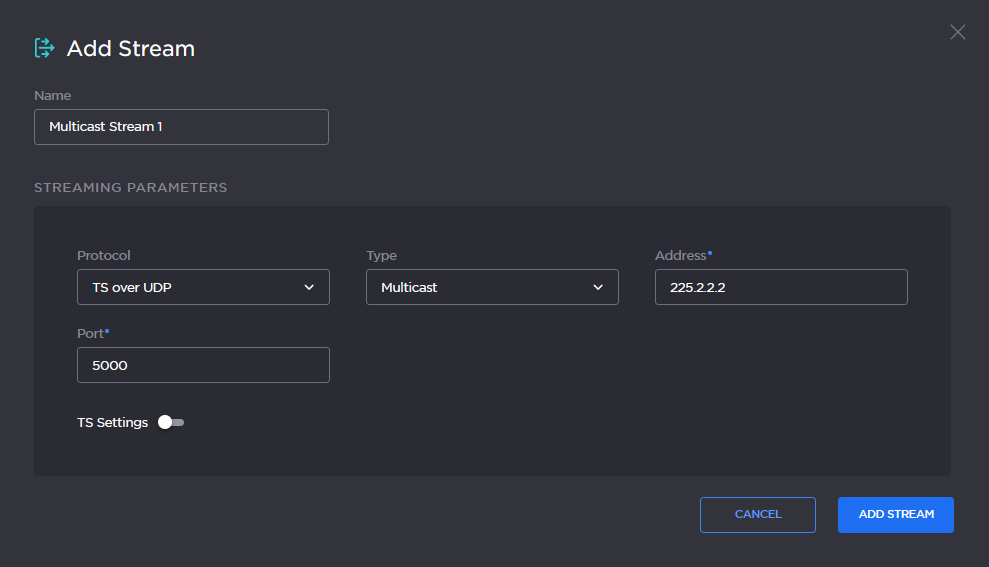

5. For Multicast streams, type in the Multicast Address, for example, 225.2.2.2.
6. Type in the Port number, for example, 5000.

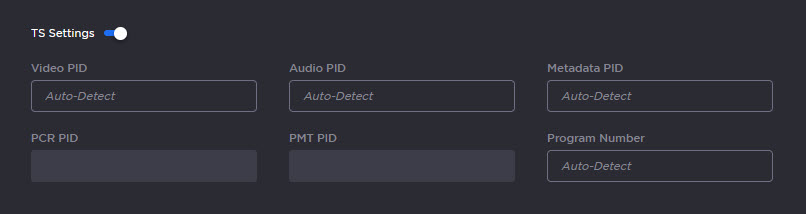

7. To configure the transport stream settings, toggle TS Settings on and fill in the PID filtering values and Program Number where applicable. See Stream Settings.




8. Click Add Stream.

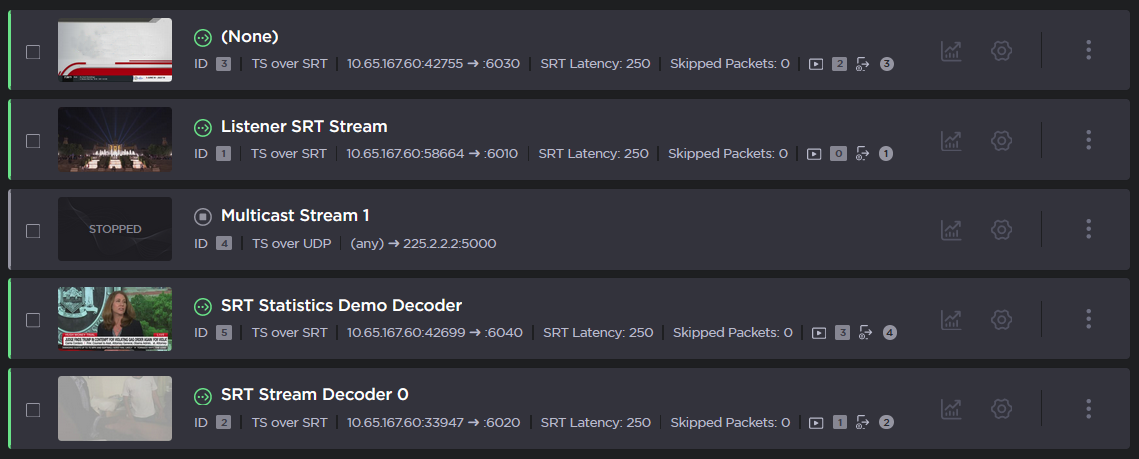

9. The new stream is added to the streams list, but is not yet active.




10. To activate the stream, bind it to one of the decoder outputs. To do so:
    1. Go to the dashboard, select the new stream from stream dropdown (below the preview thumbnail) on any available decoder, and click Apply.
       OR
    2. Go to the Decoders page, click the Settings icon



        on any available decoder, select the new stream from the Stream dropdown, and click Apply.

11. To add another stream, click Add Stream and follow the previous steps (Step #2 - #9) to configure the stream.
