Connect to the Network
Warning
Laser Radiation - SFP Port: Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Refer to the Laser Safety With SFP+ Optical Modules notice.

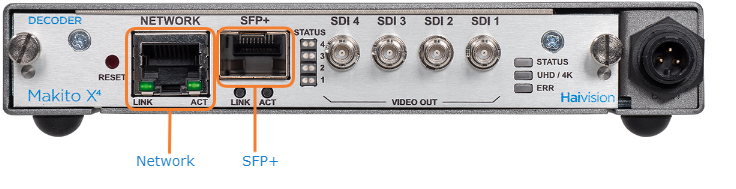

Connect the Makito X4 Decoder’s network port to the IP network using an Ethernet UTP cable (type Cat 5 or higher).
(Optional) Connect an MSA compliant 10Gbps SFP+ Network Interface Card (Optical or Electrical) in the SFP+ port. This allows you to deploy the decoder over two distinct network subnets in order to partition streaming and management services.
Important
SFP transceivers must be MSA (Multi-Source Agreement) compliant.
You can now telnet to the unit or connect via the Web interface.
