Configure Decoder Outputs

To adjust the Decoder settings:

1. From the Decoders page, click the Settings icon



   on the decoder you would like to modify.

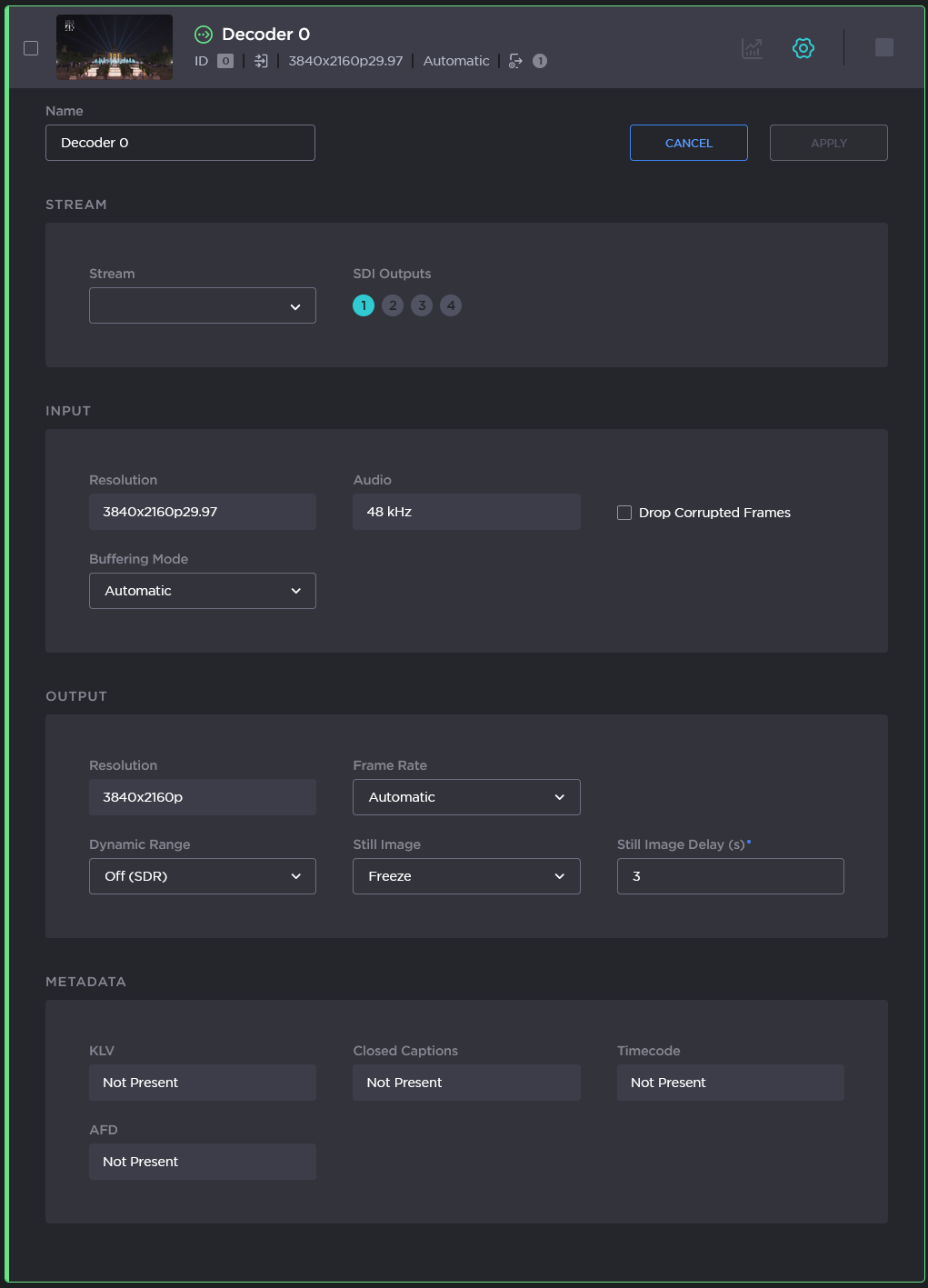

2. From the decoder settings panel, adjust settings where available. For example, you can change the Input Mode, Output Frame Rate, Still Image type, and Still Image Delay. Some of the Decoder settings are read-only.



3. To start or stop video decoding, click the Start/Stop icon



   /



   (as applicable).

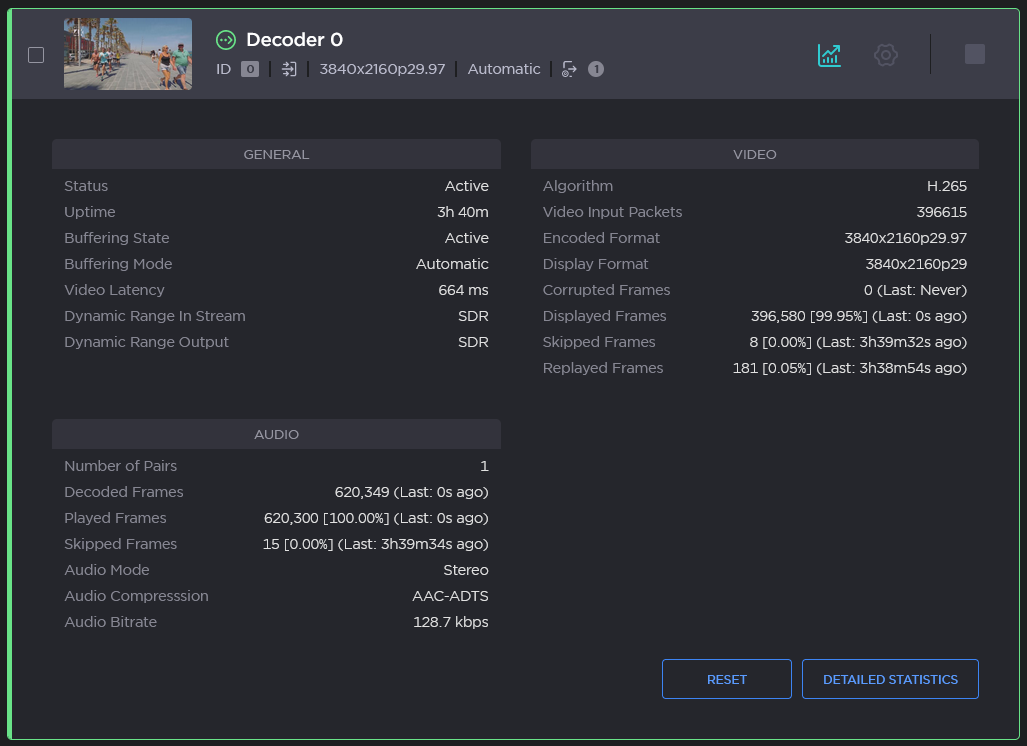

4. To view the statistics for a given decoder, click the Statistics icon



   .



   1. To reset the decoder statistics, click Reset.

   2. To view the detailed statistics for the decoder, click Detailed Statistics.
