LED Status Indicators

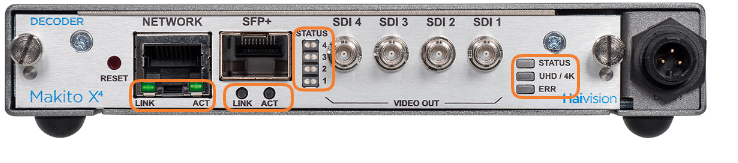

Front panel LED colors and flashing (blinking) speed indicate network traffic, Video Output status and output resolution modes of the decoder.
There are four SDI Status Output LEDs, one corresponding to each output. Each LED (1-4) reflects the state associated with the same HD-BNC output (SDI 1-4).
Network Port
| Function | Description | Indication |
|---|---|---|
| LINK | Off | Not connected |
| Green blinking once per second | Connected at 10 Mbps | |
| Green blinking twice per second | Connected at 100 Mbps | |
| Green blinking three times per second | Connected at 1000 Mbps | |
| ACT | Off | No activity |
| Green intermittent | Little activity (e.g., management). The LED should be lit when there is activity. | |
| Green solid | Intense activity (e.g., receiving video traffic) |
SFP+ Port (Future Use)
| Function | Description | Indication |
|---|---|---|
| LINK | Off | Not connected |
| Green solid | Connected | |
| ACT | Off | No activity |
| Green intermittent | Little activity (e.g., management). The LED should be lit when there is activity. | |
| Green solid | Intense activity (e.g., receiving video traffic) |
SDI Output Status
| Function | Description | Indication |
|---|---|---|
| SDI1 / SDI2 / SDI3 / SDI4 | Off | No data. Either the decoder is off, the stream is not flowing, or the stream does not contain any audio or video. |
Solid Amber | SDI is being driven by either audio or video, but not both. | |
Solid Green | SDI is being driven by both audio and video. | |
Blinking Amber | There is an error on the decoder driving this output. Note The only error that currently triggers this is Oversubscription. For more information, see Oversubscription of Decoder Channels. |
General
| Function | Description | Indication |
|---|---|---|
STATUS | Off | No power |
Green fast blinking | Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault. | |
Green slow blinking | Booting/Initialization | |
Green solid | Booting/Initialization sequence is complete (No fault/Normal operation). | |
Red fast blinking | Reset button is pressed for more than four seconds (Factory Reset enabled). | |
Red slow blinking | Reset button is released after the Red fast blinking state (executing Factory Reset). | |
| UHD/4K | Solid Green | A valid 4K input stream is actively being processed. Note All SDI channels support 6G/12G (UHD/4K) video output. |
| ERR | Amber solid | The decoder has encountered an unrecoverable error. |
