After signing in to the Web interface, you will have access to the decoder configuration settings. All of the settings can be adjusted via the Web browser.

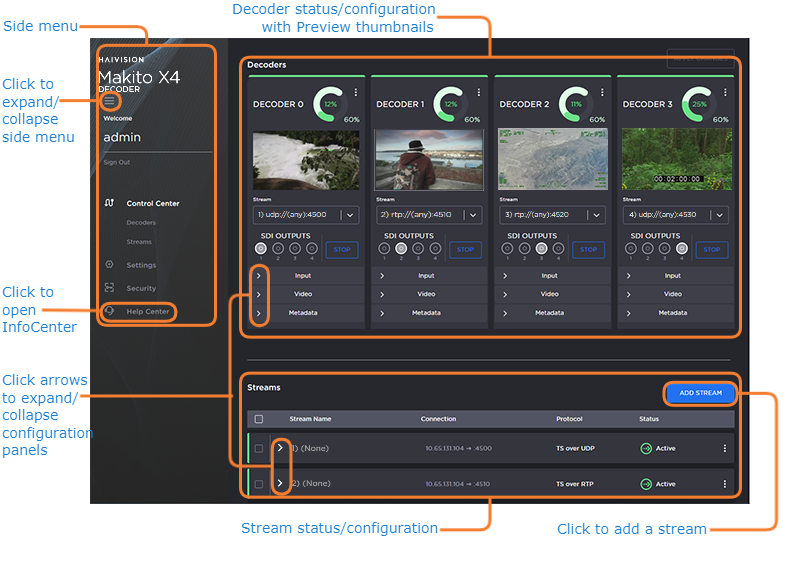

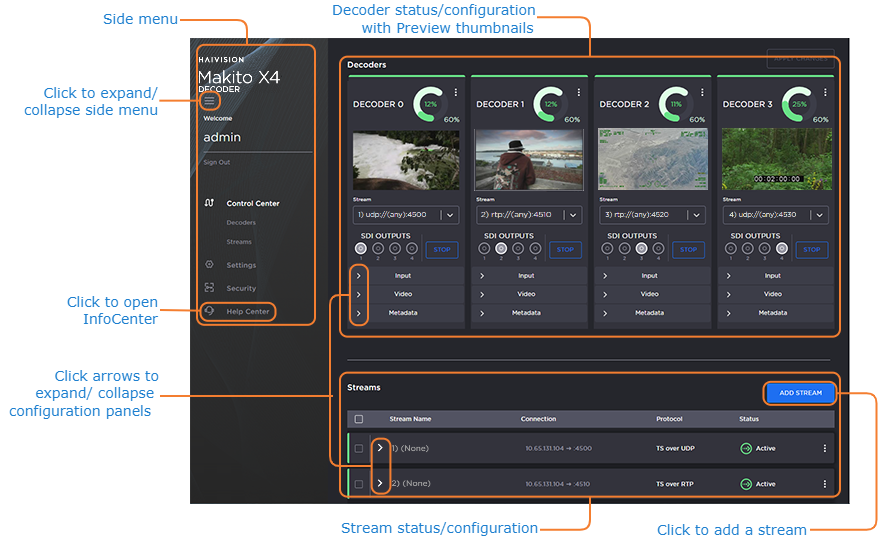

The Web interface opens to the Control Center, as shown in the following example. Your account information is displayed in the side menu. You can create streams and configure the decoders all on one page. Preview Thumbnails in the Decoder configuration panels provide a visual reference of each video decoder’s output.
To configure decoder settings, select Decoders from the side menu.
To set up streaming, select Streams from the side menu.
To access the administration or security settings, select Settings or Security from the side menu and then select the option from the tab bar, for example Network or Accounts.
To access online Help, select Help Center from the side menu. This opens the Haivision InfoCenter website to the Makito X4 decoder documentation page.
Note
If no external internet connection is available, a local Makito X4 decoder online Help is opened in your Web browser. For the most up-to-date documentation, please visit the Haivision InfoCenter.

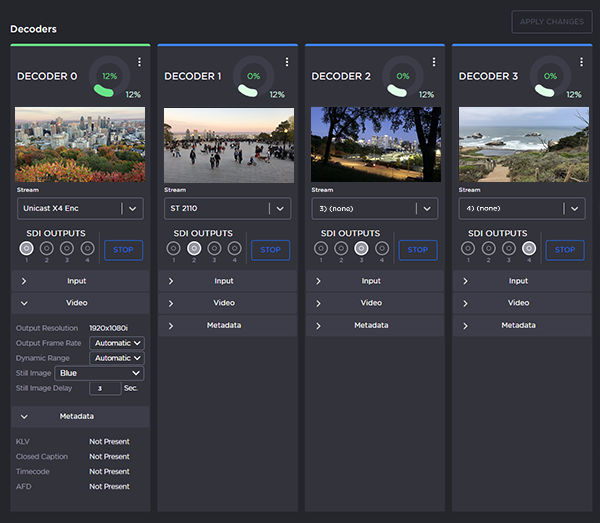

(Where applicable) Click the arrow () to expand or collapse the Decoders or Streams configuration panels. The following example shows the Decoder 0 Input, Video and Metadata configuration panels expanded.
Tip
The donut charts on each Decoder panel show the resources used per decoder (darker green slice), as well as globally (lighter green slice). For more information, see Donut Charts.
