LED Status Indicators

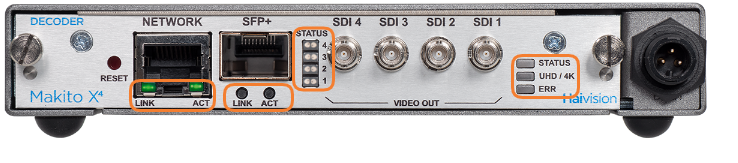

Front panel LED colors and flashing (blinking) speed indicate network traffic, Video Output status and output resolution modes of the decoder.

There are four SDI Status Output LEDs, one corresponding to each output. Each LED (1-4) reflects the state associated with the same HD-BNC output (SDI 1-4).

Network Port

Function

Description

Indication

LINK


OffNot connected
Green blinking once per secondConnected at 10 Mbps
Green blinking twice per secondConnected at 100 Mbps
Green blinking three times per secondConnected at 1000 Mbps
ACT

OffNo activity
Green intermittentLittle activity (e.g., management). The LED should be lit when there is activity.
Green solidIntense activity (e.g., receiving video traffic)

SFP+ Port (Future Use)

Function

Description

Indication

LINKOffNot connected
Green solidConnected
ACT

OffNo activity
Green intermittentLittle activity (e.g., management). The LED should be lit when there is activity.
Green solidIntense activity (e.g., receiving video traffic)

SDI Output Status

Function

Description

Indication

SDI1 / SDI2 /
SDI3 / SDI4


Off

No data. Either the decoder is off, the stream is not flowing, or the stream does not contain any audio or video.

Solid Amber

SDI is being driven by either audio or video, but not both.

Solid Green

SDI is being driven by both audio and video.

Blinking Amber

There is an error on the decoder driving this output.

Note

The only error that currently triggers this is Oversubscription. For more information, see Oversubscription of Decoder Channels.

General

Function

Description

Indication

STATUS

Off

No power

Green fast blinking

Reset button is pressed for less than four seconds.

If the Reset button is not pressed, there is a power fault.

Green slow blinking

Booting/Initialization

Green solid

Booting/Initialization sequence is complete (No fault/Normal operation).

Red fast blinking

Reset button is pressed for more than four seconds (Factory Reset enabled).

Red slow blinking

Reset button is released after the Red fast blinking state (executing Factory Reset).

UHD/4K

Solid Green

A valid 4K input stream is actively being processed.

Note

All SDI channels support 6G/12G (UHD/4K) video output.

ERR

Amber solid

The decoder has encountered an unrecoverable error.
