Installing Firmware Upgrades

Note

Before you can install a firmware upgrade on the Makito X4, you may need to obtain and install an updated license (depending on the version limit and expiration date of the currently installed license). For more information, see Managing Licenses

When you first receive a Makito X Series appliance, the necessary firmware is pre-installed on it. Firmware upgrades and licenses are issued through Haivision's Download Center on our website at: https://support.haivision.com.

Please note that you may download the latest firmware and documentation by registering via the Haivision Support Portal.

When a firmware upgrade becomes available, you can easily install it from the Web interface. You will first need to copy the upgrade file to your local computer or network.

The firmware upgrade comes in the form of a file with the extension .hai, which when loaded will replace the application on your Makito X Series appliance. The firmware upgrade components are digitally signed, and these signatures are all verified before performing the installation.

This section provides instructions to install a firmware upgrade from the Web interface.

Tip

Do not delete existing licenses before uploading the new license when upgrading to a new release.

To install a firmware upgrade:

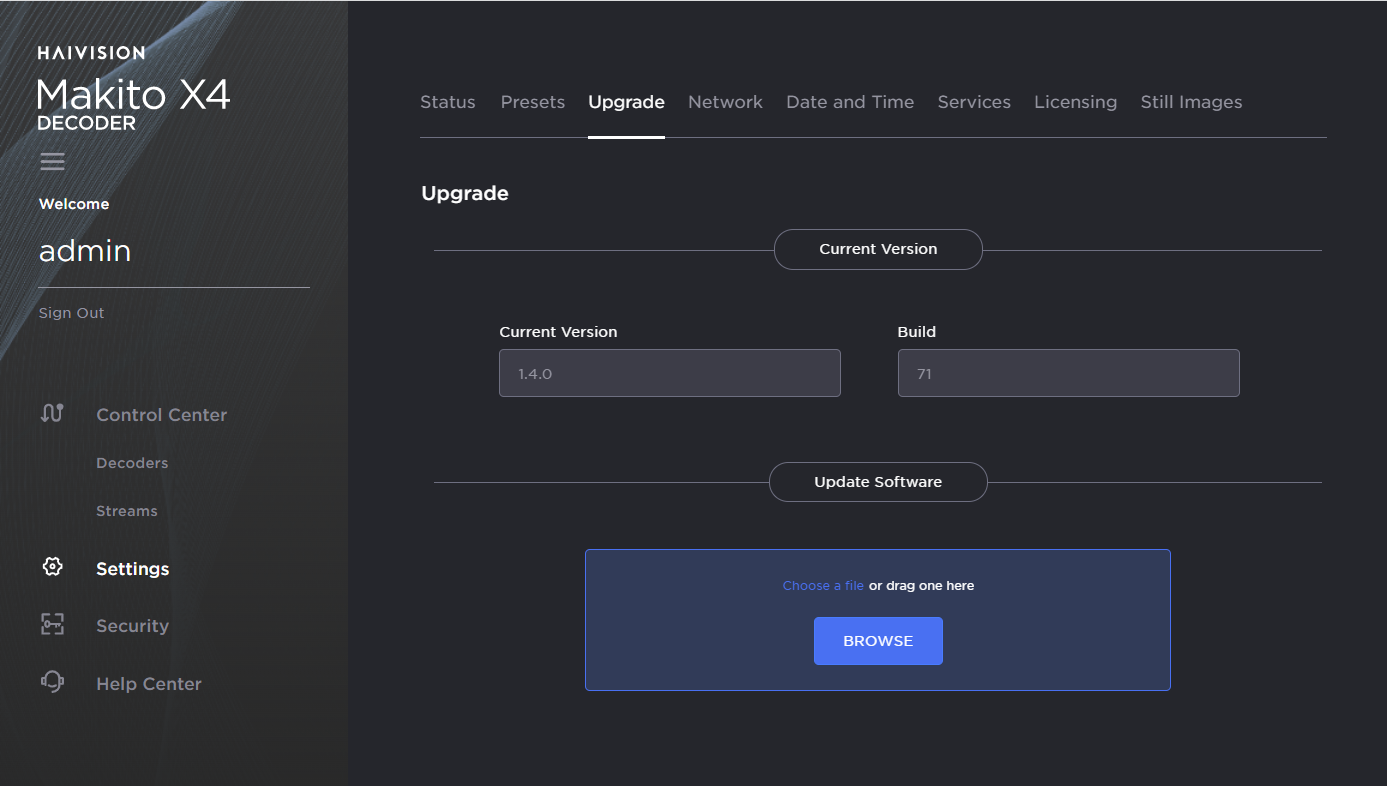

  1. Click Settings on the side menu and Upgrade on the navigation bar.
    The Upgrade page opens.

  2. Drag the upgrade file to the drop area or click Browse or Choose a file to select the file.

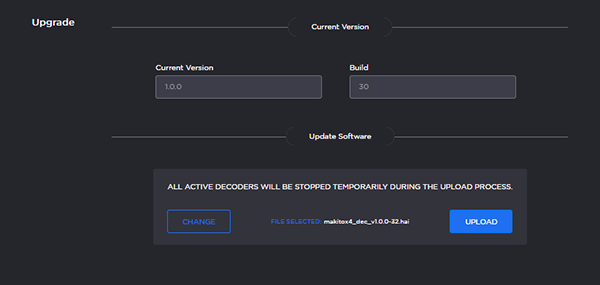

  3. When you see the filename in the text box, click Upload.
  4. Wait for the file to be uploaded and verified and the file system synced.

    Important

    Remain on this page and do not click anything else in the Makito X4 Web interface during the upload.

    If any of the package components has been modified or is not signed by a valid certificate, the verification will fail and the downloaded package will be discarded.

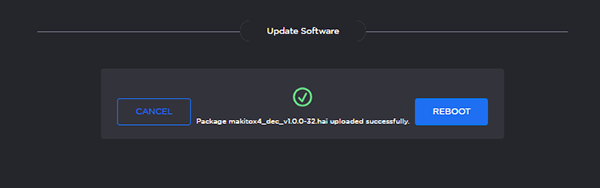

  5. When the file is uploaded and verified successfully, you will see a confirmation page (as shown in the following example).

  6. Click Reboot

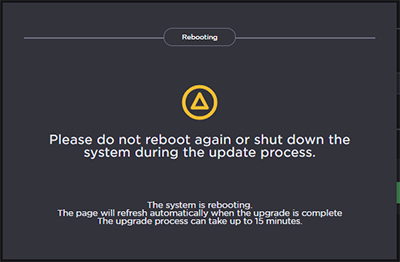

    While the unit is rebooting, the Status LEDs will flash, and you will see a warning page (as shown following).

    Caution

    Do not proceed or shut down the system while the Status LEDs are still flashing. Failure to wait could result in damage to your system.

    Once the unit has rebooted, the browser will display the Sign-In page for the Web interface (depending on your Web browser and settings). If not, reload the Sign-In page.

  7. Clear your browser cache after the firmware upgrade.
  8. Sign in again in order to access the decoder. For more information, see Signing In to the Web Interface.
