Enabling and Disabling Network Services
For security purposes, an administrator may need to stop one or more network services from accessing the Makito X4 decoder. From the Services page, you can enable and disable network services, including HTTP, SSH, Telnet, and SNMP. You can also enable or disable Haivision EMS as well as the Control Center Thumbnail Previews.
Important
In order to optimize your decoder’s performance, it is recommended that only the required network services be enabled. Please review the network services to make sure services used for your application are enabled or disabled as appropriate.
Caution
Take care not to disable all network services; you must at least keep http (Web interface), telnet, or ssh active. Otherwise you will lose access control to the unit, and the only way to re-enable these services is by a Factory Reset (For details, see Resetting the Decoder).
Click Settings on the side menu and Services on the navigation bar.

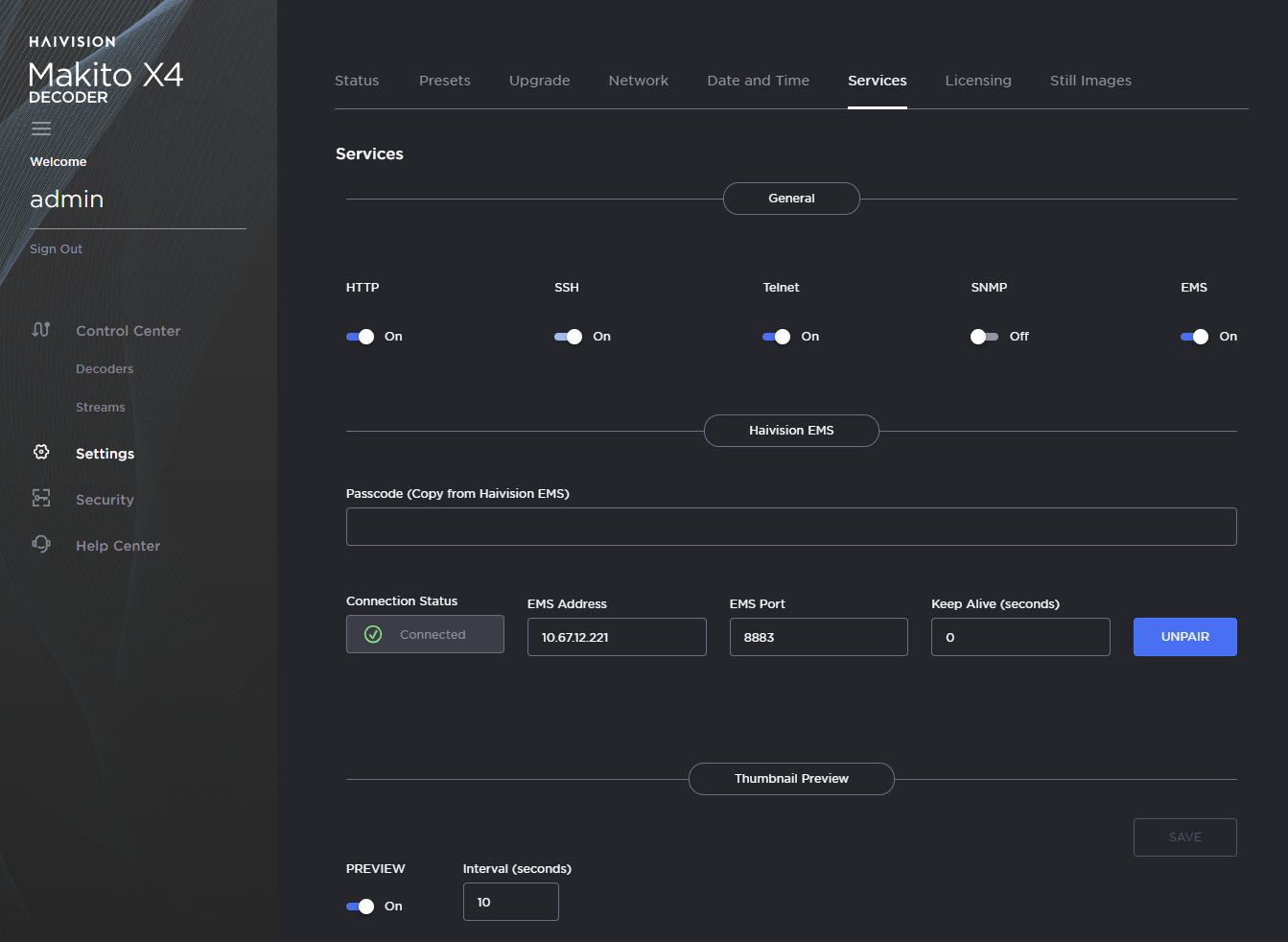

The Services page opens displaying the current status of network services.

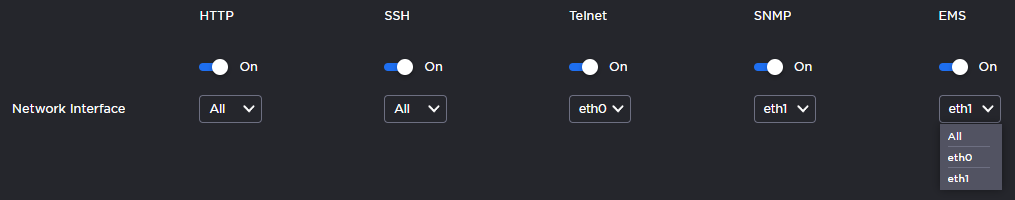

- To enable or disable a service, toggle the associated Service button to On or Off. If the SFP+ module on the decoder is used to add a second NIC (eth1), select the Network Interface to be used (All, eth0, or eth1). The service(s) will be stopped or started immediately (you do not need to click Apply).
For details, see Services Settings. - To pair the decoder with Haivision-EMS, toggle the Haivision-EMS button to On and click Configure. See Pairing the Decoder with Haivision EMS.
To enable thumbnail previews, toggle Preview to On, input the desired interval length (in seconds), and click Save.
Tip
Network services can also be enabled/disabled using the CLI service command.
