Configuring Still Image Streaming

From the Still Images page, you can manage the collection of custom static images that the decoder can display when there is no input stream present. Once uploaded, the custom still image can be selected from the Decoder configuration panels. Each decoder channel can be configured to display a different custom Still Image.

The image file formats supported are JPEG and PNG.

Note

It is not necessary to have a different version of the custom Still Image for every display format. The decoder automatically resizes the selected image for proper display.

To upload a static image:

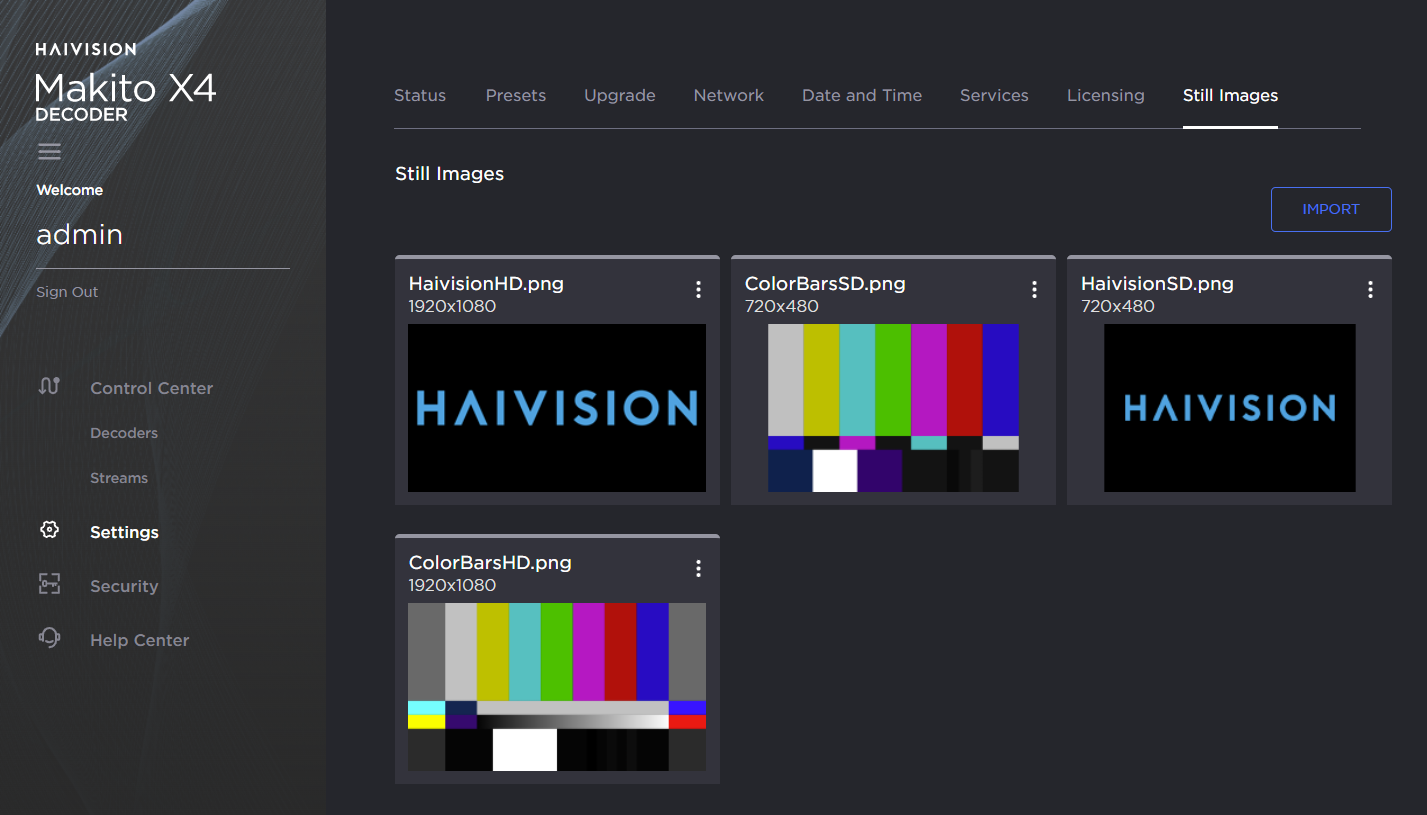

1. Click Settings on the side menu and Still Images on the navigation bar.
   The Still Images page opens, displaying the list of still images that have been uploaded for the decoder.




2. To upload a new image file, click Import.

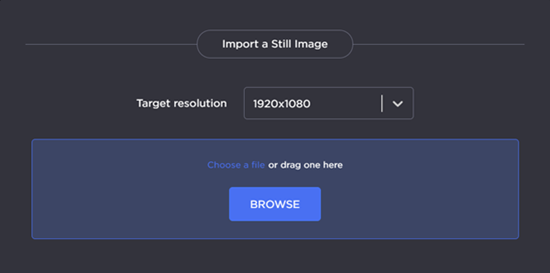

3. On the Import a Still Image dialog, select the Target Resolution for the image.




4. Next drag the image file to the drop area or click Browse or Choose a file to select the file.

5. When you see the filename in the text box, click Upload.




   Tip

   To remove the selection or select a different image file, click Cancel.
