Configure Decoder Outputs

To adjust the Decoder settings:

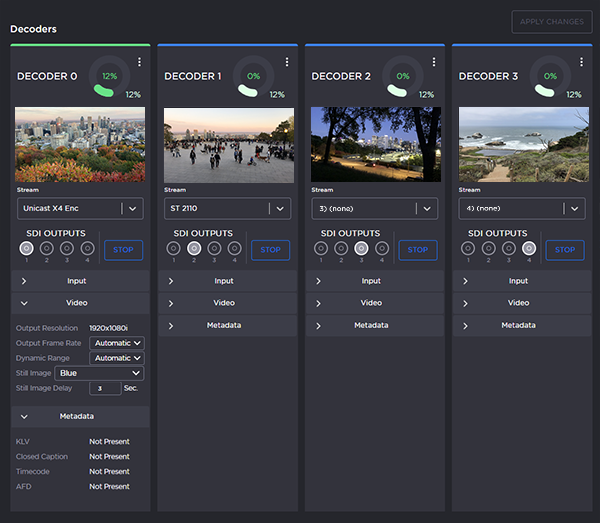

1. On the Decoders panel, again starting with Decoder 0, click the Input, Video and Metadata arrows (



   ) to expand the configuration panels.
   Some of the Decoder settings are read-only.





   Tip

   The donut chart on each Decoder panel shows the resources used per decoder (darker green slice), as well as globally (lighter green slice). For more information including the color coding for the status bars, see Donut Charts.

2. Adjust settings where available. For example, you can change the Input Mode, Output Frame Rate, Still Image type, and Still Image Delay.



   Note

   The decoder will display the Still Image if it is no longer receiving video (for example, if the encoder stream has stopped or the network connection is lost).

3. To start or stop video decoding, click Start or Stop (as applicable).

4. To view statistics for the decoder, click the More Options ("three dots") menu icon and select  Statistics.








Related Topics:

• Configuring Decoder Outputs
