Chassis Styles

The Makito X4 decoder is available in the following chassis styles:

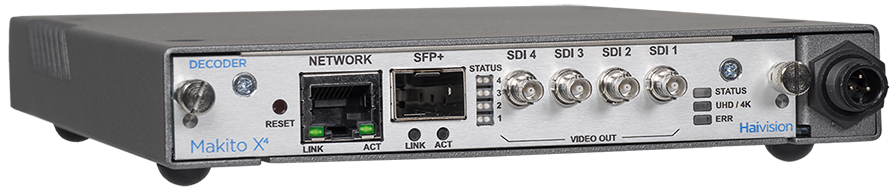

• as an ultra-compact appliance for single, dual or quad channel encoding.

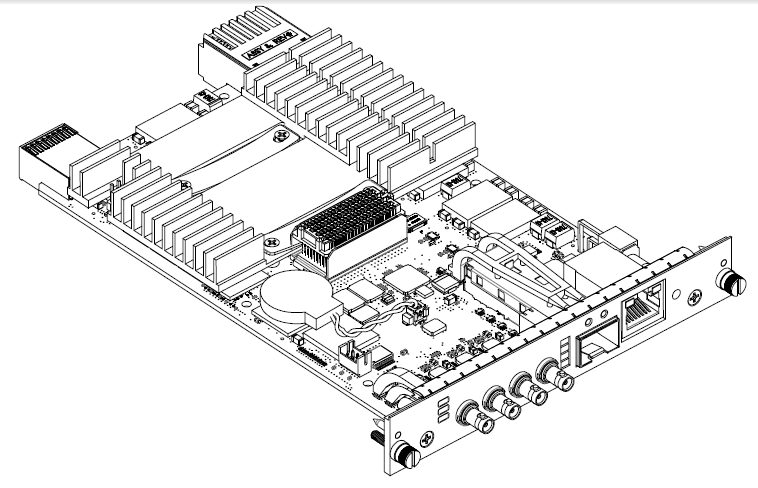

• as a blade within a 1RU chassis (MB6X) that can contain up to six single-height or three dual-height Makito X Series or other Haivision encoder/decoder blades.
• as a blade within a 4RU chassis (MB21) that can contain up to 21 single-height or ten dual-height Makito X Series or other Haivision encoder/decoder blades.

The Makito X4 decoder appliance and blade and MB6X and MB21 chassis are shown in the following figures.

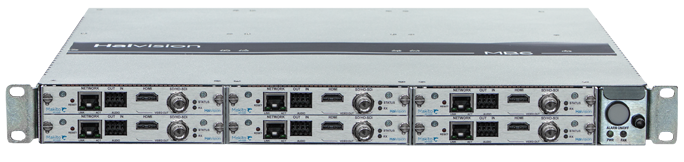

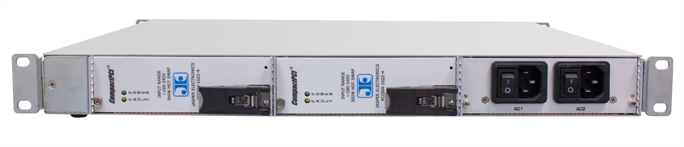

MB6X Multichannel Chassis (Front and Rear Views, #MB6X-RAC)

Note

The MB6X is available with a single AC, DC, or medical grade AC power supply. For details, please refer to the MB6 Chassis Installation Guide .

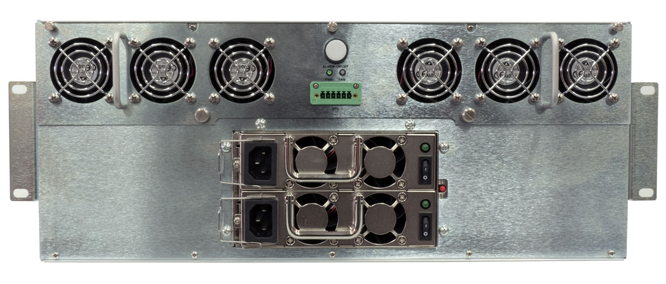

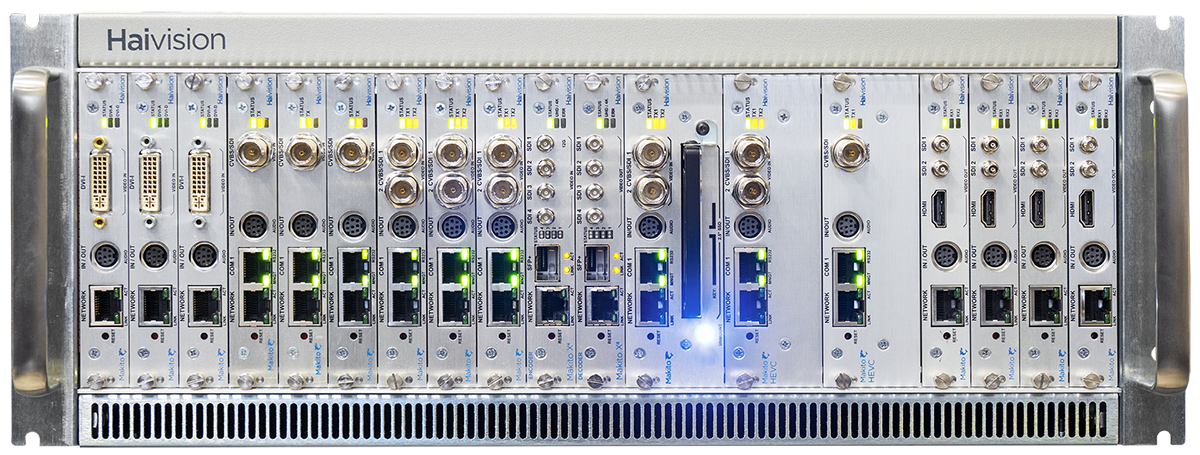

MB21 Multichannel Chassis (Front and Rear Views, #F-MB21X-R)

For information on the MB21 chassis, refer to the MB21 Chassis Installation Guide.
