Access the Web Interface

  1. Open a Web browser of your choice, such as Chrome, Firefox, Safari, or Edge.

    Note

    Internet Explorer is not supported on the Makito X4 decoder.

  2. Type the IP address for the decoder into the browser's address bar and press Enter.
    The Makito X4 decoder comes pre-configured with the following default settings:

    IP AddressSubnet MaskGateway
    10.5.1.2255.255.0.010.5.0.1

    Note

    To access the Web interface, your computer must be in the same IP Address range (subnet). You may have to temporarily change your computer’s IP Address to be in the same subnet as the decoder. Only then will you be able to access the Makito X4 and change its IP address, and then afterwards change your computer's IP address back. For details, see Configuring Network Settings in the User's Guide.
  3. The first time you try to access the Web interface from a new browser, the browser may not recognize the Makito X4’s https connection, and you may get a Security Certificate Warning (such as “This Connection is Untrusted.” or “The site’s security certificate is not trusted.”). You must accept the Makito X4’s self-signed certificate in order to access the Web interface.

    Note

    The Makito X4 identity certificate and trusted root certificates may be managed using the CLI certificate command. See certificate in the User's Guide.

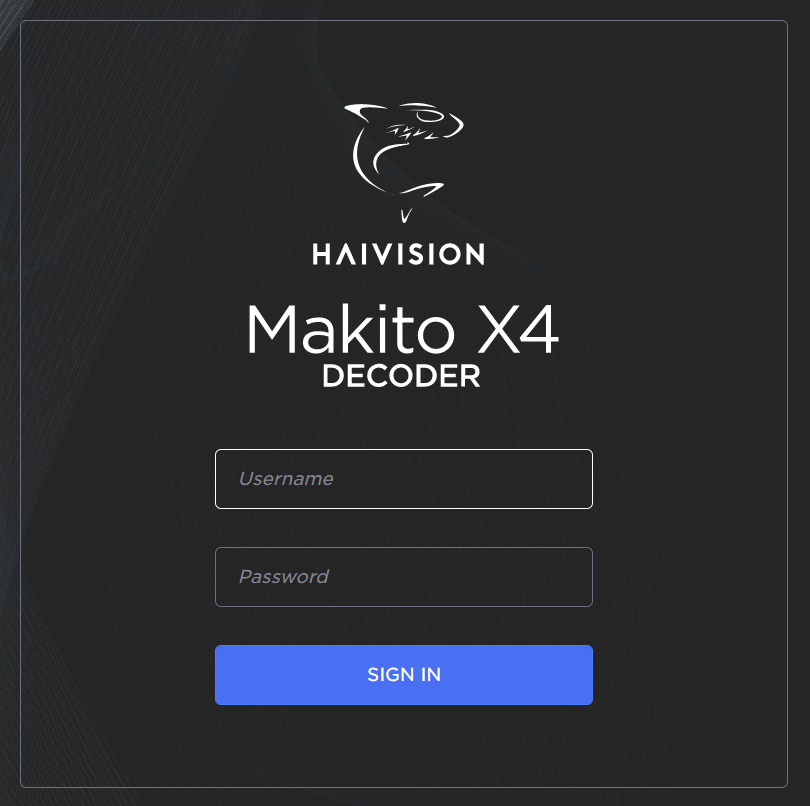

  4. Sign in to the Makito X4 decoder Web interface, using the default administrative user name and password.

    Please refer to the Important Notice (postcard included in the box or available from the Download Center on the Haivision Support Portal) for the default login credentials.

    Important

    Makito X Series devices ship from the factory with only the admin account enabled. For security reasons, the two default user accounts (user and operator) are locked at the factory as well as after a factory reset. An administrator must unlock them and change the passwords to use them for the first time.

    Tip

    For security purposes, be sure to change the default passwords! See Changing Your Password in the User's Guide.

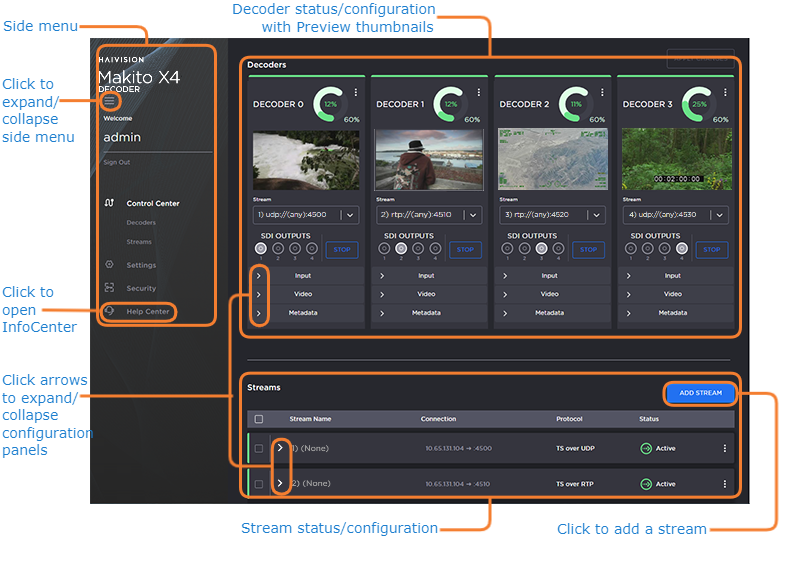

    The Web interface opens to the Control Center.


    Tip

    The donut chart on each Decoder panel shows the resources used per decoder (darker green slice), as well as globally (lighter green slice). For more information including the color coding for the status bars, see Donut Charts.
