Setting Up a Second Stream

To create a second stream:

1. On the Outputs List View, click the



    Add button again.
2. Follow the steps in Setting Up Streaming Outputs to configure the second session.

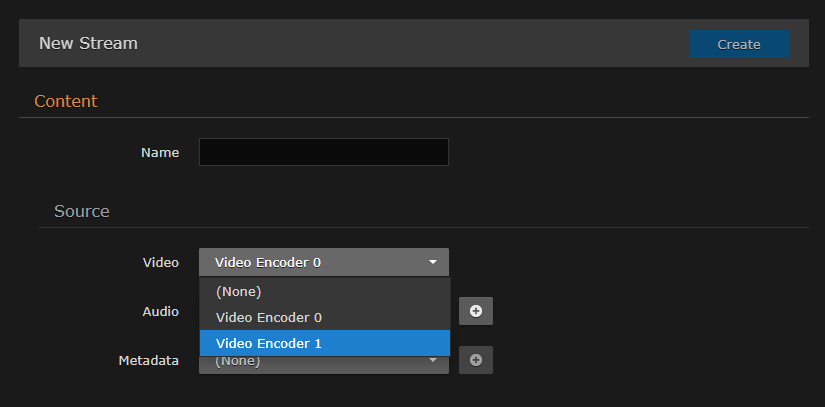

3. Except for the Video Source, select a different Video Encoder. For example, if you selected Video Encoder 0 for the first stream, now select Video Encoder 1 (to capture input from SDI Input 2, as shown in the following example).




4. Also, under Streaming Parameters Destination, use a different Port number, for example, 2400.
5. Click Apply to start streaming.
