Network Connector

Note

This page includes information regarding both the original Makito X1 chassis and the Makito X1 chassis v2. The Network connector and DC IN/IO connector on v2 have been changed in order to meet higher vibration requirements.

The following tables provide the manufacturer names, part numbers, and pinouts for the Makito X1 Rugged Network connectors.

Network Connector v2



On UnitMating Connector
ManufacturerLEMOLEMO
Connector TypeNetwork ConnectorNetwork Connector
Part NumberHEP.2M.312.XLNPFGP.2M.312.XLCT


Network Connector



On UnitMating Connector
ManufacturerHiroseHirose
Connector TypeNetwork ConnectorNetwork Connector
Part NumberLF10WBRB-12SLF10WBP-12P(31)
Network Connector Pinout v2
Contact #Description
1ETH B+
2ETH B-
3ETH C+
4ETH C-
5ETH D+
6ETH D-
7ETH A+
8ETH A-
9GND
10SYS_RST#
11N/C
12N/C

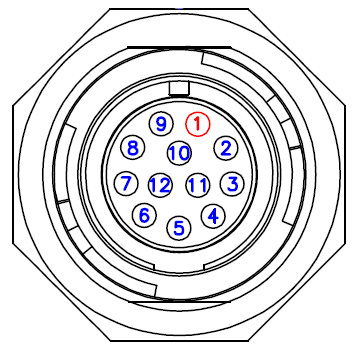

Network Connector Pinout
Contact #Description
1ETH A+
2ETH A-
3ETH B+
4ETH B-
5ETH C-
6ETH C+
7ETH D-
8ETH D+
9N/C
10N/C
11SYS_RST#
12GND
