Configuring App Settings


Settings screen is where you configure app-wide settings, including Live and Record options. The table below lists available settings, their values, and a brief description.

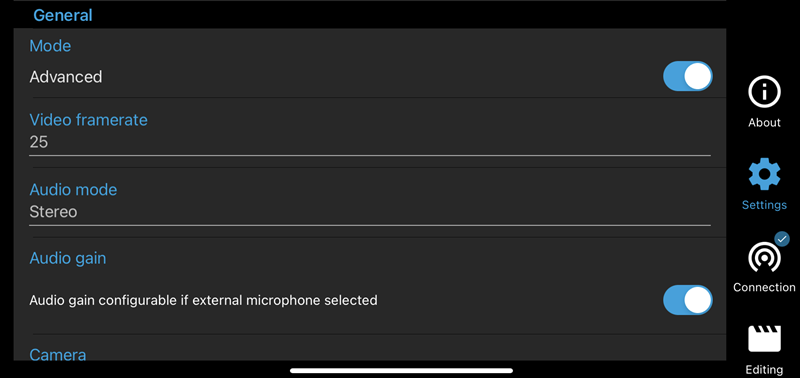

Settings Screen with Advanced Mode enabled in Landscape

  • Lite
  • Advanced

If set to Lite mode, the following settings are configurable: video resolution, video framerate and audio mode. Camera settings are automatically configured and cannot be modified from the Live or Record screens.


After changing the Mode, an app restart is required for your change to take effect.

Video framerate
  • 25
  • 29.97

  • 30
  • 50

  • 59.94

  • 60

Sets the framerate for both live transmissions and recordings.
Audio mode
  • Stereo
  • Mono
Sets the audio mode for both live transmissions and recordings.
Audio gain*Enabled/disabled

If enabled, the user can adjust the audio in the Vu-meter bar from the Live or Recording screens.

If disabled, the user cannot adjust the audio in the Vu-meter bar from the Live or Recording screens if an external microphone is connected.



Enables/disables camera stabilization.
  • Auto
  • Portrait
  • Landscape
Displays the app in the selected orientation. Auto automatically detects the device's orientation and displays the app accordingly.
BGAN*Enabled/disabledEnables/disables transmission over BGAN satellites.
Screensaver*Enabled/disabledIf enabled, a screensaver will start when a Live or Recording is in progress and the screen has not been touched for 30 seconds. The screensaver consists of a black screen with a Live or Record timer.
Video encoding*
  • H.264/AVC
  • H.265/HEVC
The video codec used for live transmissions.
Video resolution
  • 1920x1080
  • 1280x720
  • 640x360
  • 640x480

Dynamic resolution*Enabled/disabled

If enabled, the resolution is dynamically adjusted in time according to the network throughput. The configured Live resolution is the target MoJoPro will attempt to reach. It is recommended that this setting is enabled when transmitting over cellular network.

If disabled, the resolution selected under Video Resolution is used.

Latency*1.2 sec – 10.0 secEnd-to-end latency between the camera and decoder output.
Video capped bitrate*100 kbps – 10.0 MbpsSets the top video bitrate for the live transmission to reach. When selecting a live resolution, this is automatically adjusted to best support the selected resolution.
Audio bitrate*
  • 64 kbps
  • 128 kbps
  • 256 kbps

Automatic recording at live start*Enabled/disabledIf enabled, a separate local recording is automatically started when the user starts a live transmission.
Video encoding*
  • H.264/AVC
  • H.265/HEVC
The video codec used for recordings.
Video resolution
  • 3840x2160†

  • 1920x1080
  • 1280x720
  • 640x360
  • 640x480

Automatic save after record*Enabled/disabled

If enabled, the recording is automatically saved without user confirmation.

If disabled, the user is prompted to confirm the file save when the recording is stopped. The file can be watched and renamed before saving.

Automatic forward after record*Enabled/disabled

If enabled, automatically forwards a file after it is recorded to the currently selected connection.

Audio bitrate*
  • 64 kbps
  • 128 kbps
  • 256 kbps

* Requires the Mode to be set to Advanced to be configurable.
† Available on iOS 16 and MacOS 13 and above.
