Product Overview

Makito FX Encoder (#S-MFXE-SDI-HDMI)

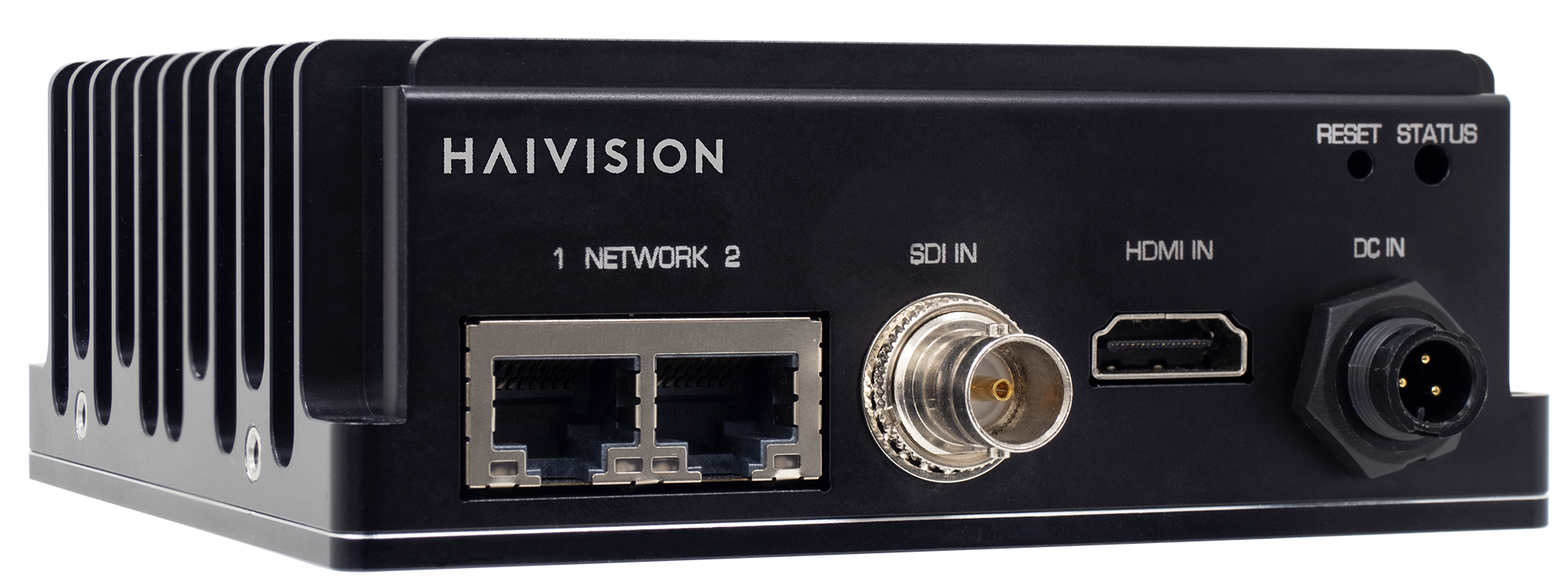

Haivision's Makito FX is a real-time HEVC/H.265 and AVC/H.264 video encoder, designed for demanding, mission-critical live video applications. It can ingest a full 2160p50/60 4K UHD (Ultra High Definition) video source as well as up to 4 stereo pairs of digital audio. The Makito FX is available as two compact standalone appliances; the original Makito FX Encoder (HDMI-SDI appliance), and the Makito FX DisplayPort Encoder.

Makito FX features include the following:

• 4K Broadcast Quality Video – The Makito FX Encoder can encode live video in HD or 4K UHD for streaming over IP networks in a broad range of applications. It can encode with 8- or 10-bit pixel depth to deliver excellent picture quality, even at low bitrates. For workflows where color precision is needed, it offers 4:2:2 chroma subsampling to maintain color fidelity and prevent artifacts.



  Note

  When using HDMI or DisplayPort connections, the MFX can also encode DCI 4K (4096X2160p30) video.

• High Dynamic Range – In addition to Standard Dynamic Range (SDR), 10-bit pixel depths, and Wide Color Gamut support (WCG), the Makito FX can also encode live content for HDR workflows using HLG or PQ (ST 2084) transfer functions.



• Ultra Low Latency Streaming – Up to two encoding cores can securely deliver simultaneous low latency multi-bitrate streams over challenging networks, including the public internet.



• Dual Network Interfaces – Use dual NICs to keep management separate from the video network, and create path-redundant streams to improve reliability while live-streaming.


• Secure Content Encryption and Reliable Streaming – The Makito FX Encoder can encrypt video streams with up to 256-bit AES key lengths using the SRT protocol. It also adapts to fluctuating network bandwidth in real-time, limiting packet loss and ensuring uninterrupted high-quality video.
