Configuring Video Encoder Settings

From the Video Encoder Detail View, you can define the Input interface and video encoding parameters, such as the Codec Algorithm, Encoding Profile, Bitrate, Frame Rate, and GOP Size.

1. From the Video Encoders List View, click the Settings icon



   on the encoder panel.

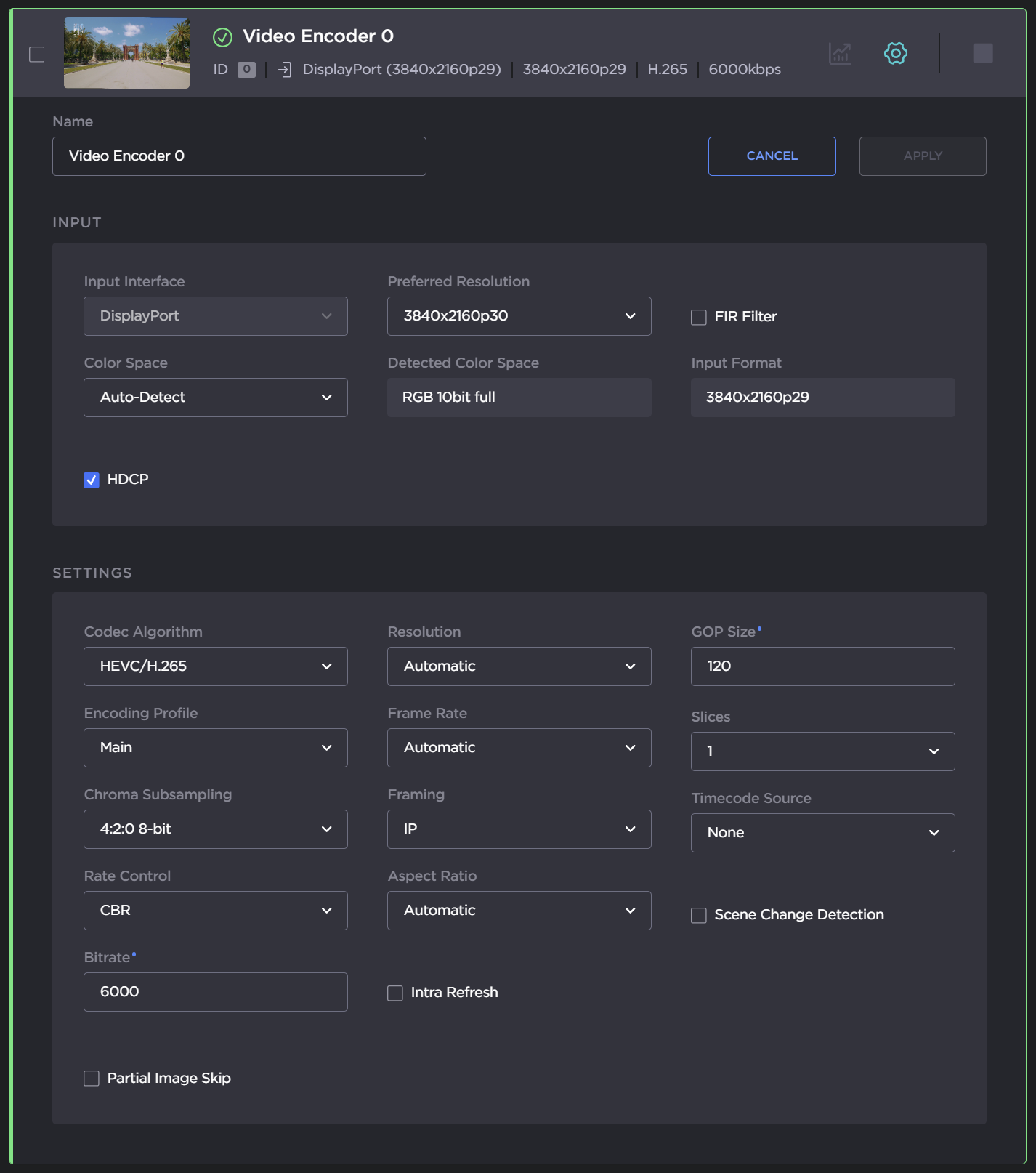

   The Video Encoder Detail View opens, displaying the settings for the selected video encoder.



2. Select or enter the new value(s) in the appropriate field(s). See Video Encoder Settings.



   Tip

   For supported video encoding resolutions, see Supported Video Input Resolutions and Scaling Capabilities.

3. Click the Settings icon



    again to retract the video encoder settings.

4. To start or stop the encoder, click the Start/Stop



   /



   icons (as applicable).

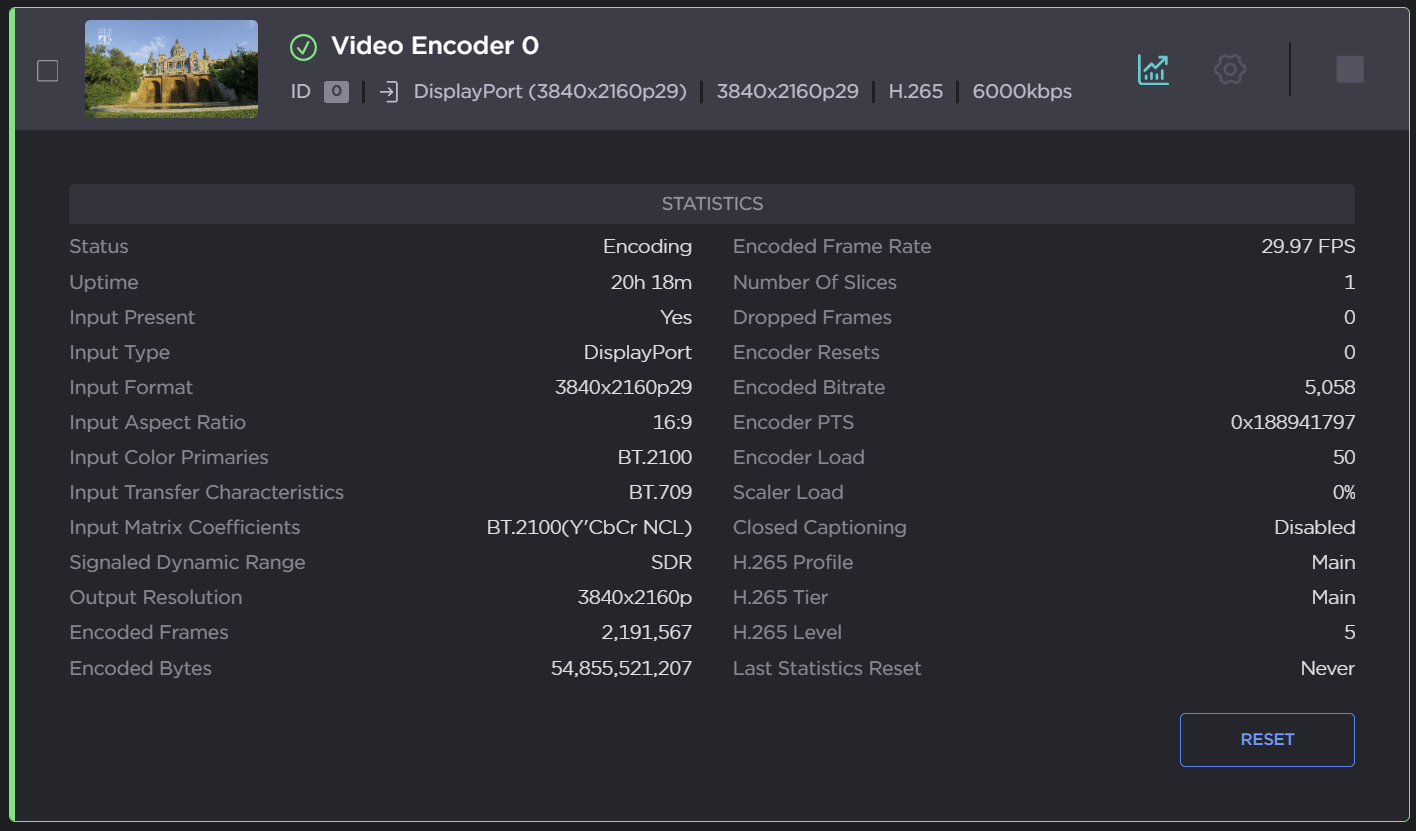

5. To view the statistics for the encoder, click the Statistics icon



   . For details, see Video Encoder Statistics.



6. To reset the video encoder statistics, click Reset.

7. Click the Statistics icon



   again to retract the video encoder statistics panel.

8. To apply your changes, click Apply.

• Video Encoder Settings
• videnc (CLI Command)
