LED Status Indicators

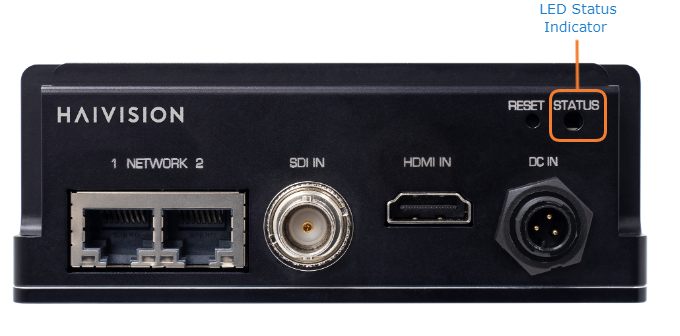

The LED colors and flashing (blinking) speed indicate the status (operational state) of the Makito FX encoder.

LED Status Indicators

The following sections list the status LED behaviour for the Makito FX encoder

General
Function

Description

Indication

BOOTING/INITIALIZATION SEQUENCE



1. Green solid

Upon connection to a power source, booting/initialization sequence has begun (10 seconds).

2. Green slow blinking

Booting/initialization sequence in progress.

3. Green solid

Booting/initialization sequence complete (No fault/Normal Operation).

STATUS

Off

No power.

Green fast blinking

Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault.

Red fast blinking

Reset button is pressed for more than four seconds (Factory Reset enabled).

Red slow blinking

Reset button is released after the Red fast blinking state (executing Factory Reset).

Network Port
Function

Description

Indication

LINK


OffNot connected
Green blinking once per secondConnected at 10 Mbps
Green blinking twice per secondConnected at 100 Mbps
Green blinking three times per secondConnected at 1000 Mbps
ACT

OffNo activity
Green intermittentLittle activity (e.g., management). The LED should be lit when there is activity.
Green solidIntense activity (e.g., transmitting video traffic)
