System Interfaces

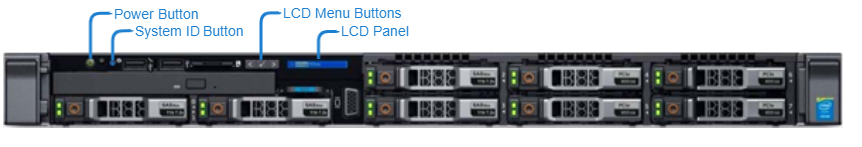

Kraken Premium System ( Front)

Kraken Premium System ( Back)

LED Status Indicators

The LED colors and flashing (blinking) speed indicate the status (operational state) of the server.

Indicator	Icon	Description
Front Panel
Power-On		Power-on indicator lights when the system power is on. The Power button controls the power supply output to the system.
LCD Panel		Displays system ID, status information, and system error messages. LCD lights blue during normal system operation LCD lights amber when the system needs attention, and the LCD panel displays an error code followed by descriptive text
Front and Back Panels
System Identification Button		Can be used to locate a particular system within a rack. When one is pressed, the system status indicator on the back flashes until one of the buttons is pressed again.

Kraken Ultra System ( Front )

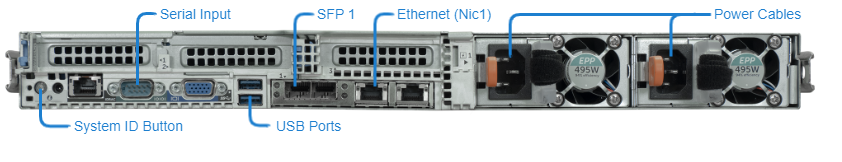

Kraken Ultra System (Back)

LED Status Indicators

The LED colors and flashing (blinking) speed indicate the status (operational state) of the server.

Indicator	Icon	Description
Front Panel
Power-On		Power-on indicator lights when the system power is on. The Power button controls the power supply output to the system.
LCD Panel		Displays system ID, status information, and system error messages. LCD lights blue during normal system operation LCD lights amber when the system needs attention, and the LCD panel displays an error code followed by descriptive text
Front and Back Panels
System Identification Button		Can be used to locate a particular system within a rack. When one is pressed, the system status indicator on the back flashes until one of the buttons is pressed again.
