Configuring CoT Retransmission

From the Metadata Detail View, you can configure CoT retransmission of COT metadata received over the Serial or UDP interface. The metadata will be retransmitted as a CoT/UDP unicast or multicast stream so that multiple CoT listeners can access the source CoT data. You can retransmit up to 8 CoT/UDP messages.

To configure CoT Retransmission:

  1. From the Metadata List View, create of click the link for a serial or UDP CoT metadata source to retransmit. For details on setting up the metadata source, see Configuring Metadata Parameters.

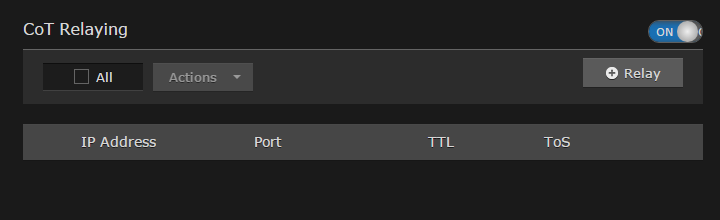

  2. On the Metadata Detail View, (if necessary) scroll down the page and toggle the CoT Relaying button to On (as shown in the following example).
    CoT Relaying button On
  3. To add a CoT retransmission destination, click the
    Plus Icon
    Relay button.

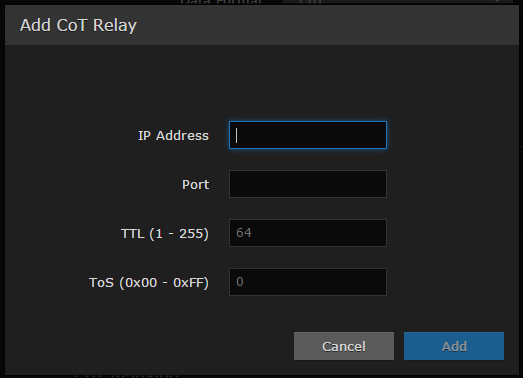

  4. On the Add CoT Relay dialog, enter the IP Address and Port for the destination.
    Add CoT Relay dialog
  5. Click Add

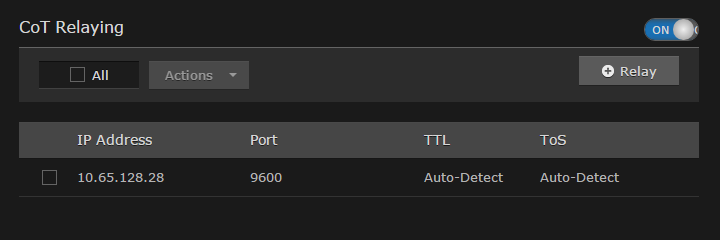

    The stream is added to the list:
    CoT Relaying - 1 destination added
  6. To edit or delete a CoT relay destination, select the relay from the list and select Edit or Delete from the Actions drop-down menu.
