A/V and Power Connections (Rear panel)

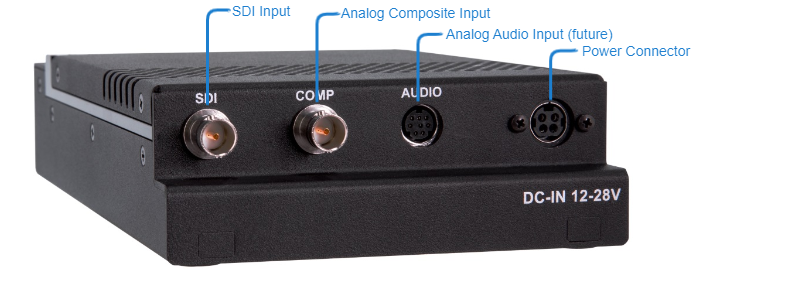

  1. To capture HD/SD-SDI digital video, connect your video source cable to the SDI input (BNC connector).
  2. To capture Analog Composite video, connect your video source cable to the COMP input (BNC connector)
  3. Plug the DC connector into the power connector at the rear of the unit.
  4. Plug the power cord into the AC adapter.
  5. Plug the cord into a grounded AC power source. (Refer to Caution under Physical Installation.)


    The unit is preconfigured to turn On when power is applied.
