Connecting the Device
- Open the box, verify the contents, and visually inspect the items for any shipping damage. If necessary, contact Haivision for return instructions.
Unpack the box and position the hardware on a stable work surface. Optionally, mount it on a wall, under a desk, or on the back of a monitor.

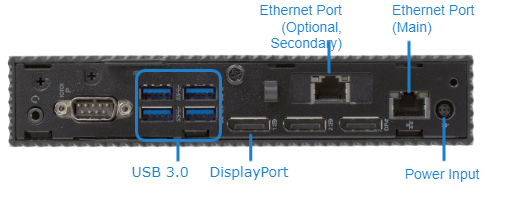

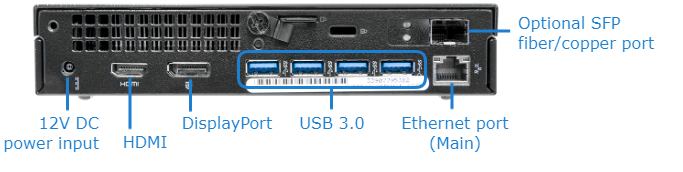

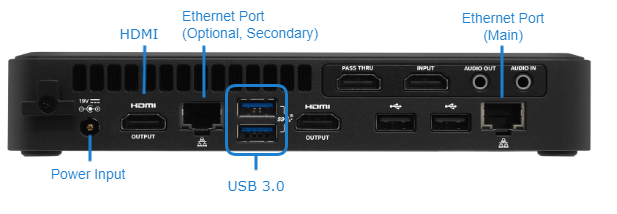

On the back of the device:
- Connect to your network using an Ethernet cable to the main Ethernet port.
For initial setup purposes, attach a mouse and keyboard to the available USB ports, and monitor to the DisplayPort (Gen 1 or 2 versions only) or HDMI (Gen 1 or 3 versions only) ports.
- (Optional, Gen 2 or 3 versions only) For a second NIC, connect to your network using an Ethernet cable on the secondary Ethernet port.
(Optional, Gen 1 version only) Connect the Fiber SFP module for the second NIC.
Tip
To remove the Fiber SFP module, rotate the latch and unplug it from its slot.
- Attach the included power cord to the power receptacle and plug the other end into a power outlet.

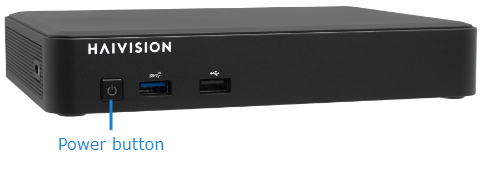

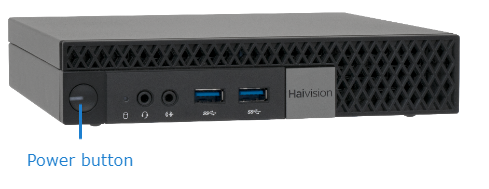

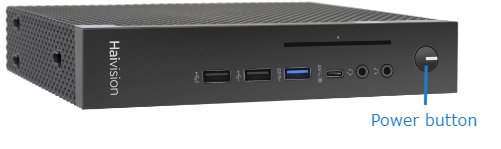

On the front of the device, press the Power button to power it on. The power LED lights.
