Connecting the Makito X4 Decoder

  1. Switch to the Makito X4 Decoder tab or enter the URL for the Makito X4 Decoder web interface.
  2. Click Add Stream to add the stream to the Makito X4 Decoder.

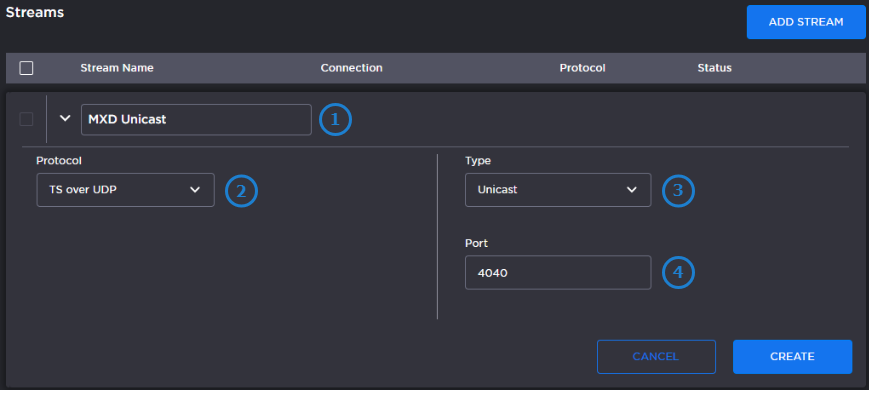

  3. On the New Stream screen:
    • Enter a (1) name and the (2) protocol.
    • For this example, we are using unicast TS over UDP. So, you need to include the (3) type and (4) port information.
  4. Click Create.
  5. Repeat steps #2 and #3 as needed to define additional streams.

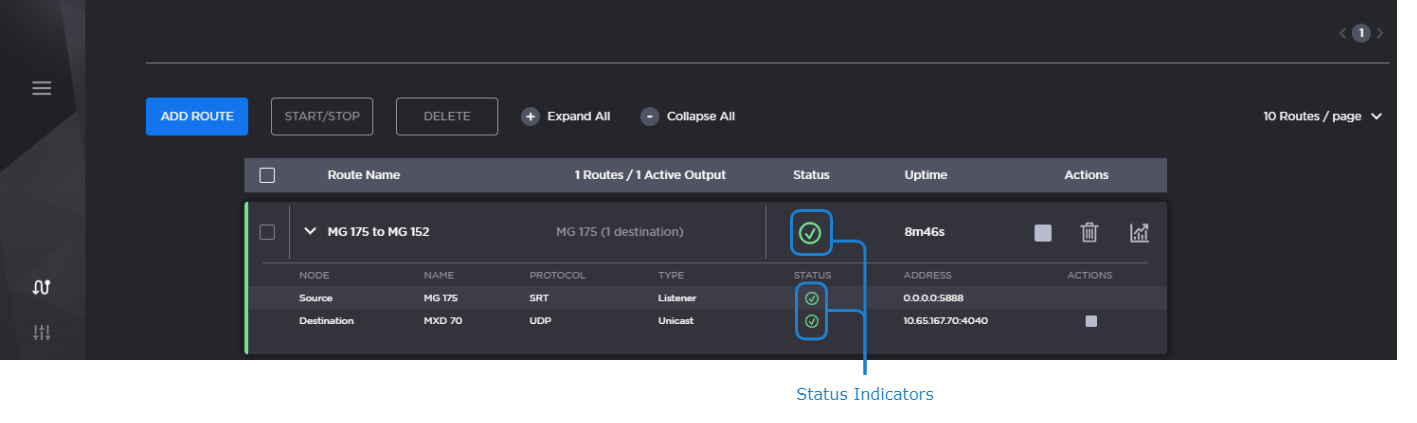

  6. To ensure that everything is set up properly, verify that the streams have green status indicators on each device.

Note

Refer to your Makito X4 Decoder documentation for more information on displaying streams.
